  9. Generator Panel, 12-1/2 H x 8-7/8 In. W

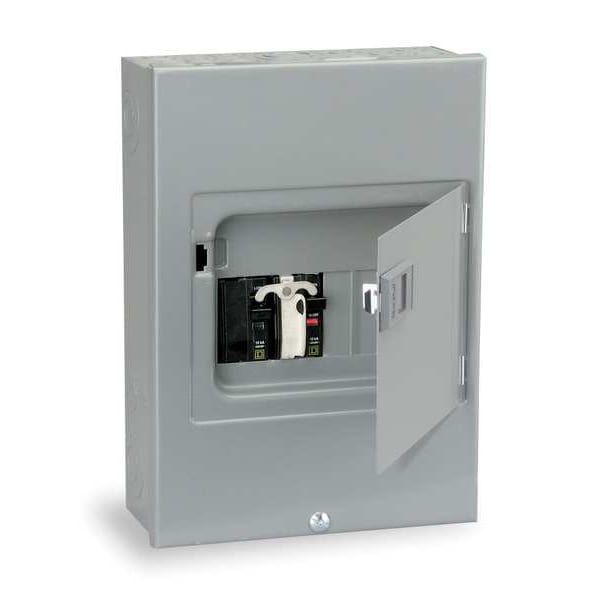

Square D Generator Panel, 12-1/2 H x 8-7/8 In. W QO48M30DSGP - main

Generator Panel, 12-1/2 H x 8-7/8 In. W

  • Mfr # QO48M30DSGP

  • Zoro # G0547066

product price: $329.99
/ea
Free Shipping & Returns

Key Features

Number of Circuits
8
Height
12 1/2 in
Mount
Surface
Max. Wire Size
14 AWG
Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO48M30DSGP
Zoro #
G0547066
UPC #
785901868200
Country of Origin
Mexico

Dimensions

Height
12 1/2 in
Max. Wire Size
14 AWG
Depth
3-3/4 in
Width
8 7/8 in
Overall Width
8 7/8 in
Maximum Wire Size
8 AWG
Overall Height
12 9/16 in
Minimum Wire Size
14 AWG
Overall Depth
3 13/16 in
Wire Size
AWG 14 to AWG 8 aluminium/copper

Details

Item
Generator Panel
Number of Circuits
8
Mount
Surface
Color
Gray
Phase
1
Voltage
120/240V
Max. No. of Tandem Breakers
4
Number of Spaces
4
Enclosure Material
Steel
Ground Bar Kit
Mfr. No. PK7GTA
NEMA Enclosure Type
1
Includes
PK7GTA, QO217SB,QO250PSPD,HEPD25, HEPD50, HEPD80, HEPD25MKF, HEPD58MKF, QOB120, QO120DF, QO120, QO230, QO120GFI, QO120CAFI, QO220, QOM2200VH, QOB120GFI, QO115, QO2100, QO220GFI, QOB330, QOB120VH, QO240, QO2125, QOB360
Standards
UL Listed
Material
tin plated aluminium busbar
NEMA Enclosure Rating
1
Rated Voltage
120/240V AC
Current Rating
30 A
Maximum Number of Tandem Breakers
4
Prewired
Yes
Required Main Breaker
30 A
Manufacturer Warranty
18 mo
Number Of Phases
1 phase
Cover Type
surface cover with door
Device Composition
grounding bar (ordered separately)
Product Certifications
UL Listed
Wiring Configuration
3-wire
Electrical Connection
lugs
Short-Circuit Current
10 kA
Busbar Material
Tin plated aluminium: busbar
Line Rated Current
30 A
Awg Gauge
AWG 14...AWG 8 aluminium/copper
Surface Finish
baked enamel Gray
Ambient Air Temperature For Operation
-5 °C || 40 °C
Box Number
4
Number Of Tandem Circuit Breakers
4
Product Or Component Type
panel
Tightening Torque
Cover 20 lb.in
Nema Degree Of Protection
NEMA 1 indoor
Load Center Type
main breaker

Description

Generator Panel, Phase Single, Rated Voltage 120/240V AC, Current Rating 30 A, Number of Spaces 4, Prewired Yes, NEMA Enclosure Rating 1, Includes PK7GTA, QO217SB,QO250PSPD,HEPD25, HEPD50, HEPD80, HEPD25MKF, HEPD58MKF, QOB120, QO120DF, QO120, QO230, QO120GFI, QO120CAFI, QO220, QOM2200VH, QOB120GFI, QO115, QO2100, QO220GFI, QOB330, QOB120VH, QO240, QO2125, QOB360, Overall Height 12 9/16 in, Overall Width 8 7/8 in, Overall Depth 3 13/16 in, Color Gray, Enclosure Material Steel
