Shop All Regenerative Blowers
Schmalz

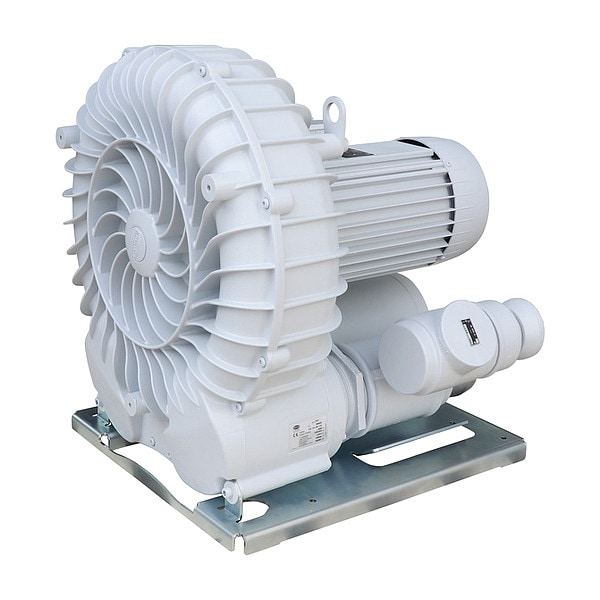

Vacuum Blower
Mfr # 10.04.01.00098
Zoro # G611471302
product price: $11,553.99
/ea
Free Shipping & Returns
$11,553.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Voltage 265/460V
- Inlet Size 76 mm
- Outlet Size 4 in
- Standards CSA, UL Listed
- Housing Material Die-Cast Aluminum
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.04.01.00098
- Zoro # G611471302
- Country of Origin Germany
- Category Regenerative Blowers
Dimensions
Inlet Size | 76 mm |
Outlet Size | 4 in |
Overall Height | 596 mm |
Overall Length | 577 mm |
Overall Width | 535 mm |
Details
Item | Vacuum Blower |
Voltage | 265/460V |
Standards | CSA, UL Listed |
Housing Material | Die-Cast Aluminum |
Output Power | 6.6 kW |
Frequency | 60 Hz |
Weight | 89 kg |
Maximum Operating Pressure | 1,000 mbar |
Sound Level | 74 dBA |
Wattage | 6.6 kW |
Enclosure Rating | IP 55 |
Series | SB |
Maximum Ambient Temperature | 40 Degrees C |
Maximum Flow Rate | 440 cu m/hr |
Current Rating | 20.6/11.9/19.6/11.5/22.5 A |
Phase | Three |
Noise Level | 74 dBA |
Outlet Gender | Female |
Outlet Type | G |
Description
Vacuum Blower, Phase Three, Output Power 6.6 kW, Maximum Operating Pressure 1,000 mbar, Maximum Flow Rate 440 cu m/hr, Voltage 265/460V, Inlet Size 76 mm, Outlet Size 4 in, Outlet Type G, Outlet Gender Female, Current Rating 20.6/11.9/19.6/11.5/22.5 A, Frequency 60 Hz, Housing Material Die-Cast Aluminum
