Shop All Regenerative Blowers
Schmalz

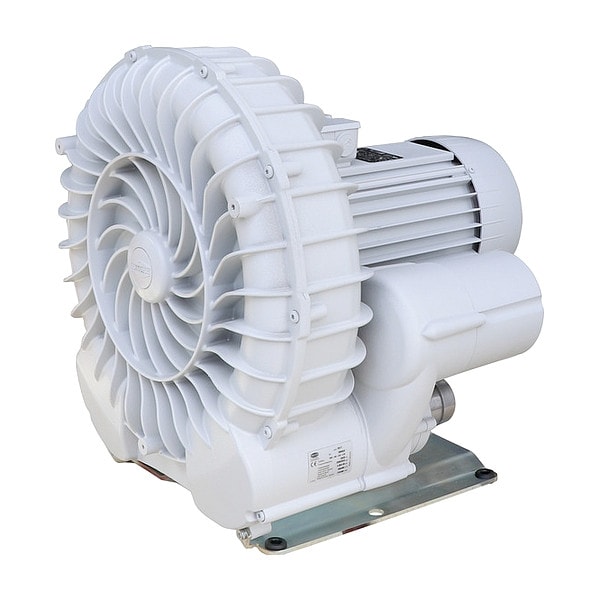

Vacuum Blower

product price: $8,329.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Voltage 230/460V
  • Inlet Size 60 mm
  • Outlet Size 2 in
  • Noise Level 73 dBA
  • Enclosure Rating IP 55
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Inlet Size 60 mm
Outlet Size 2 in
Overall Height 454 mm
Overall Length 489 mm
Overall Width 452 mm

Details

Item Vacuum Blower
Voltage 230/460V
Noise Level 73 dBA
Enclosure Rating IP 55
Maximum Flow Rate 235 cu m/hr
Sound Level 73 dBA
Series SB
Current Rating 12.0/6.0/12.7 A
Housing Material Die-Cast Aluminum
Standards CSA, UL Listed
Phase Three
Output Power 3.6 kW
Weight 49 kg
Maximum Operating Pressure 1,000 mbar
Wattage 3.6 kW
Maximum Ambient Temperature 40 Degrees C
Frequency 60 Hz
Outlet Type G
Outlet Gender Female

Description

Vacuum Blower, Phase Three, Output Power 3.6 kW, Maximum Operating Pressure 1,000 mbar, Maximum Flow Rate 235 cu m/hr, Voltage 230/460V, Inlet Size 60 mm, Outlet Size 2 in, Outlet Type G, Outlet Gender Female, Current Rating 12.0/6.0/12.7 A, Frequency 60 Hz, Housing Material Die-Cast Aluminum
