Shop All Programmable Logic Controllers
Moxa

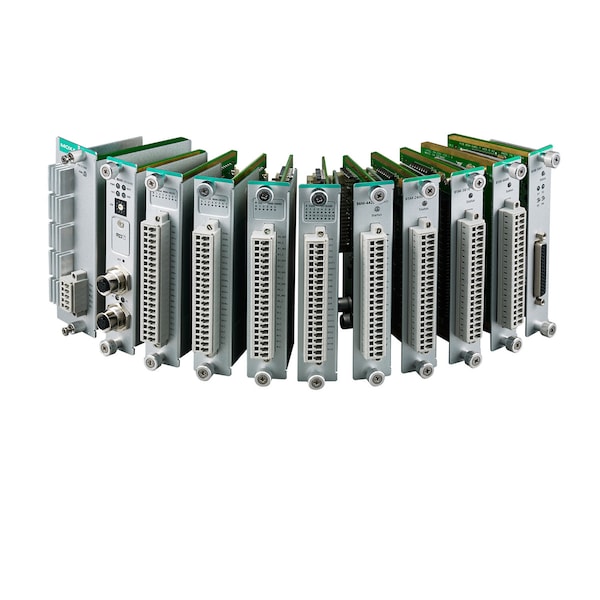

Iopac 8600 I/O Module, 8 Channel To Channel Isolated Dos, 24 Vdc
Mfr # 86M-2830D-T
Zoro # G4583689
product price: $1,106.99
/ea
Free Shipping & Returns
$1,106.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Digital Outputs 8 channels
- I/O Mode DO or PWM
- Connector Spring-type terminal block
- Input Current 76.7 mA @ 24 VDC
- Short Circuit Protection 750 mA @ 25°C
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Moxa
- MFR # 86M-2830D-T
- Zoro # G4583689
- Country of Origin Taiwan, Province of China
- Category Programmable Logic Controllers
Details
Digital Outputs | 8 channels |
I/O Mode | DO or PWM |
Connector | Spring-type terminal block |
Input Current | 76.7 mA @ 24 VDC |
Short Circuit Protection | 750 mA @ 25°C |
Isolation | To system: 3k VDC or 2k Vrms; Channel-to-channel: 1k VDC |
Current Rating | 200 mA per channel |
Type | Sink |
Over-current Protection | 2.6 A (4 channels @ 650 mA) |
Over-voltage Protection | 41 VDC |
Standard | Telcordia SR332 |
Operating temperature | -40 to 75°C (-40 to 176°F) |
Pulse Output Frequency | 1 kHz |
Wiring | I/O cable, 16 AWG (max.) |
Over-temperature Shutdown | 175°C (typical), 150°C (min.) |
Time | 1,766,037 hrs |
Description
ioPAC 8600 I/O module, 8 channel to channel isolated DOs, 24 VDC, channel LED, sink type
