Shop All Programmable Logic Controllers
Moxa

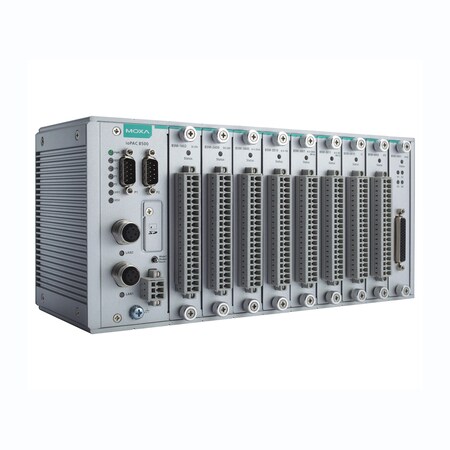

Iopac 85Xx I/O Module, 16 Dos, 24 Vdc Sink Type, -40 To 75°C
Mfr # 85M-2600-T
Zoro # G4571606
product price: $503.99
/ea
Free Shipping & Returns
$503.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Isolation 3K VDC or 2K Vrms
- Digital Outputs 16 channels
- Power Consumption 0.85 W @ 3.3 VDC
- Wiring I/O cable, max. 16 AWG
- Time 792,571 hrs
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Moxa
- MFR # 85M-2600-T
- Zoro # G4571606
- Country of Origin Taiwan, Province of China
- Category Programmable Logic Controllers
Details
| Isolation | 3K VDC or 2K Vrms |
| Digital Outputs | 16 channels |
| Power Consumption | 0.85 W @ 3.3 VDC |
| Wiring | I/O cable, max. 16 AWG |
| Time | 792,571 hrs |
| Over-current Protection | 2.6 A (4 channels @ 650 mA) |
| Connector | Spring type terminal block |
| Operating temperature | -40 to 75°C |
| Database | Telcordia (Bellcore) |
| Over-temperature Shutdown | 175°C (typical), 150°C (min.) |
| Pulse Output Frequency | 5 kHz |
| Type | Sink |
| Over-voltage Protection | 45 VDC |
| Current Rating | 200 mA per channel |
| I/O Mode | DO or pulse output |
Description
ioPAC 85xx I/O module, 16 DOs, 24 VDC sink type, -40 to 75°C
