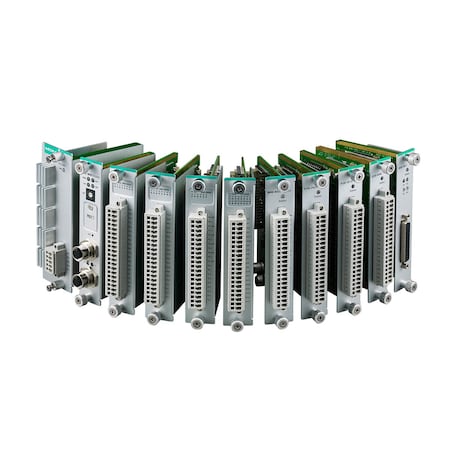

1G Cpu Module, Iec 61131-3 Programmable Controller, Rj45, -40 To 75°C

Mfr # ioPAC 8600-CPU30-RJ45-IEC-T
Zoro # G4578910

$2,409.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Input Voltage 24 to 110 VDC
Clock Real-time clock with capacitor backup
Slots ioPAC 8600-BM005: 5; ioPAC 8600-BM009: 9 ; ioPAC 8600-BM012: 12
Standards Telcordia SR332
Industrial Protocols Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), SNMPv1/v2c Trap, SNMPv1/v2c/v3

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Moxa
MFR # ioPAC 8600-CPU30-RJ45-IEC-T
Zoro # G4578910
Country of Origin Taiwan, Province of China
Category Programmable Logic Controllers

Dimensions

ioPAC 8600-BM005: 205.65 x 133.35 x 100 mm (8.1 x 5.25 x 3.94 in) ; ioPAC 8600-BM009: 324.8 x 133.35 x 100 mm (12.79 x 5.25 x 3.94 in); ioPAC 8600-BM012: 436.8 x 132.2 x 100 mm (17.19 x 5.2 x 3.94 in)

Details

Input Voltage	24 to 110 VDC
Clock	Real-time clock with capacitor backup
Slots	ioPAC 8600-BM005: 5; ioPAC 8600-BM009: 9 ; ioPAC 8600-BM012: 12
Standards	Telcordia SR332
Industrial Protocols	Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), SNMPv1/v2c Trap, SNMPv1/v2c/v3
Power Consumption	223 mA @ 24 VDC
Time Management	SNTP
No. of Power Inputs	2
Shock	IEC 60068-2-27
EMI	CISPR 32, FCC Part 15B Class A
Safety	UL 508
Wiring	Power cable, 14 to 28 AWG
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m; IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
Mode	Master, Slave
Vibration	IEC 60068-2-6
10/100BaseT(X) Ports (RJ45 connector)	RJ45 version: 2, 1 MAC address (Ethernet bypass) or 2 MAC addresses, jumper selectable
Time	ioPAC 8600-CPU30 Series: 1,358,656 hrs; ioPAC 8600-PW10-15W-T: 1,752,960 hrs; ioPAC 8600-PW10-30W-T: 1,341,777 hrs
Functions Supported	1, 2, 3, 4, 5, 6, 15, 16
Security	SSH
OS	Real-time Linux (PREEMPT_RT)
SPI-NVRAM	128 KB
EMC	EN 55032/24, EN 61000-6-2/-6-4
Management	BOOTP, IPv4, SMTP, UDP, TCP/IP
Language	C/C++, IEC 61131-3
Operating temperature	-40 to 75°C (-40 to 167°F)
Galvanic Isolation	3k VDC
Altitude	2000 m
Ambient Relative Humidity	5 to 95% (non-condensing)
eMMC	4 GB (1.7 GB reserved for the user)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
SDRAM	512 MB DDR3(L)
Console Port	RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
Installation	Wall mounting (with optional kit)
Power Connector	Spring-type Euroblock terminal
microSD Slot	Up to 32 GB (SD 2.0 compatible)
CPU	32-bit Cortex-A8 1 GHz CPU
Configuration Options	Windows Utility (RTUxpress)
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)	M12 version: 2, 1 MAC address (Ethernet bypass) or 2 MAC addresses, jumper selectable
Housing	Metal
Magnetic Isolation Protection	1.5 kV (built-in)

Description

1G CPU module, IEC 61131-3 programmable controller, RJ45, -40 to 75°C
