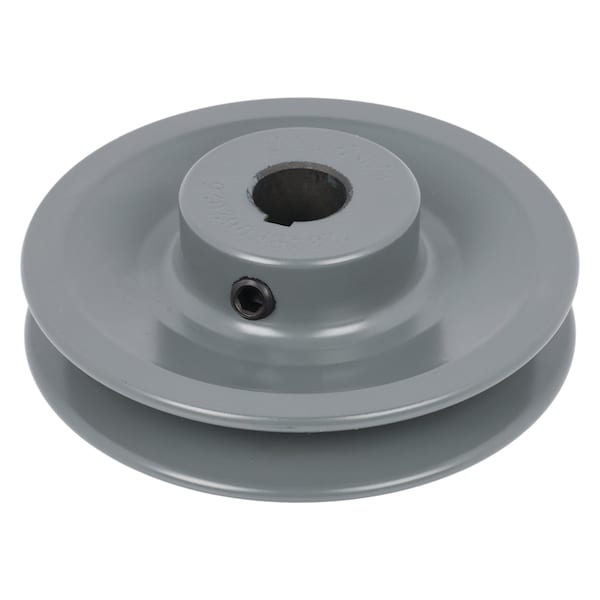

Variable Pitch V-Belt Pulley, 3.15" O.D.
Mfr # 1VP34X5/8
Zoro # G210986887
product price: $14.35
/ea
$14.35
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Number of Grooves 1
- Material Fabrication Cast
- Material Cast Iron
- Weight 1.2 lb
- For Belt Trade Size 3L, 4L, 5L, A, AX, B, BX
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Zoro Select
- MFR # 1VP34X5/8
- Zoro # G210986887
- UPC # 00195057185579
- Country of Origin China
- Category V-Belt Pulleys
Dimensions
For Belt Trade Size | 3L, 4L, 5L, A, AX, B, BX |
Outside Diameter | 3.15 in |
Bore Diameter | 5/8 in |
Overall Width | 1 7/8 in |
AX Pitch Diameter (Minimum) | 1.9 in |
BX Pitch Diameter (Maximum) | 3.2 in |
3L Pitch Diameter (Maximum) | 2.5 in |
3L Pitch Diameter (Minimum) | 1.7 in |
A Pitch Diameter (Minimum) | 1.9 in |
B Pitch Diameter (Minimum) | 2.4 in |
AX Pitch Diameter (Maximum) | 2.9 in |
4L Pitch Diameter (Minimum) | 1.9 in |
B Pitch Diameter (Maximum) | 3.2 in |
Maximum Pitch Diameter | 2.5 in (3L), 2.9 in (4L, A), 3.2 in (5L, B) |
5L Pitch Diameter (Minimum) | 2.4 in |
5L Pitch Diameter (Maximum) | 3.2 in |
A Pitch Diameter (Maximum) | 2.9 in |
BX Pitch Diameter (Minimum) | 2.4 in |
4L Pitch Diameter (Maximum) | 2.9 in |
Minimum Pitch Diameter | 1.7 in (3L), 1.9 in (4L, A), 2.4 in (5L, B) |
Keyway Depth | 3/32 in |
Maximum Face Width | 1 in |
Minimum Face Width | 0.688 in |
Length through Bore | 1 7/8 in |
Keyway Width | 3/16 in |
Description
Variable Pitch V-Belt Pulley, Bore Diameter 5/8 in, Standards REACH Certification, RoHS Compliant, For Belt Trade Size 3L, 4L, 5L, A, AX, B, BX, For V-Belt Type Classical, Cogged, Material Cast Iron, Maximum Pitch Diameter 2.5 in (3L), 2.9 in (4L, A), 3.2 in (5L, B), Number of Grooves 1, Outside Diameter 3.15 in, Set Screw Location Not Applicable, 3L Pitch Diameter (Maximum) 2.5 in, 3L Pitch Diameter (Minimum) 1.7 in, 3V Pitch Diameter (Maximum) Not Applicable
