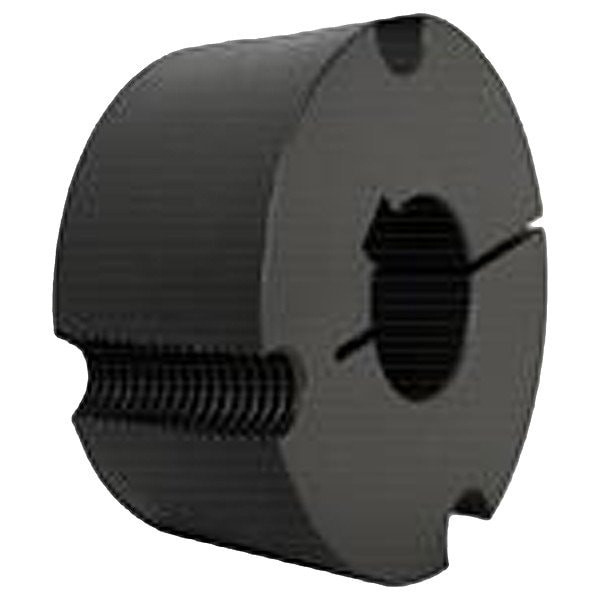

TL Bushing, 2012, 28 mm B Dia, 1.25 in L
Mfr # 2012X28MM
Zoro # G710985212
$18.35
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Bore Bushing Series 2012
- Length 1.25 in
- Overall Diameter 2.75 in
- Bushing Type Taper Lock
- Material Steel
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Zoro Select
- MFR # 2012X28MM
- Zoro # G710985212
- UPC # 00195057006485
- Country of Origin China
- Category Tapered & QD Bushings
Dimensions
Length | 1.25 in |
Overall Diameter | 2.75 in |
Bore Diameter | 28 mm |
Bolt Circle Diameter | 2.63 in |
Keyway Width | 8 mm |
Keyway Height | 3.5 mm |
Details
Bore Bushing Series | 2012 |
Bushing Type | Taper Lock |
Material | Steel |
System of Measurement | Metric |
Item | Taper Lock Bushing |
Flange Type | Flangeless |
Taper | 8 Degrees |
Includes | (2) Set Screws |
For Shaft Type | Keyed |
Maximum Torque | 7,150 in-lb |
Description
Taper Lock Bushing, Bushing Type Taper Lock, Bore Bushing Series 2012, Bore Diameter 28 mm, Length 1.25 in, Bolt Circle Diameter 2.63 in, Bolt Size Not Applicable, System of Measurement Metric, Flange Type Flangeless, Flange Width Not Applicable, For Shaft Type Keyed, Includes (2) Set Screws, Keyway Height 3.5 mm, Keyway Width 8 mm, Length Less Flange Not Applicable, Material Steel, Overall Diameter 2.75 in, Taper 8 Degrees
