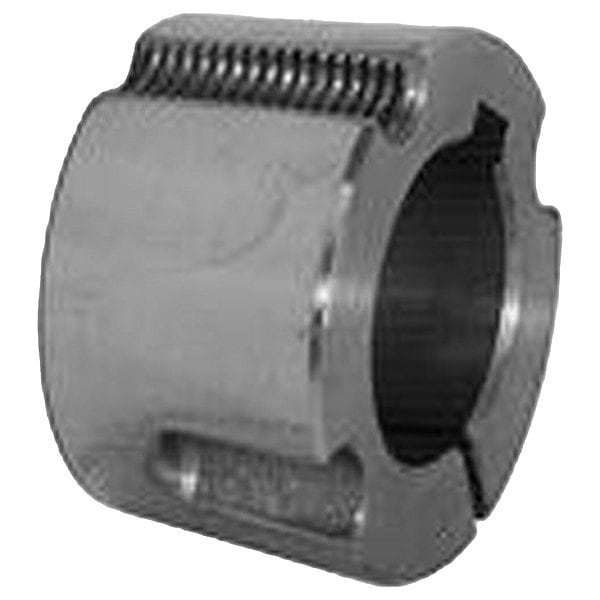

TL Bushing, 1108, 3/4 in B Dia, 0.875 in L
Mfr # 1108X3/4
Zoro # G410984690
product price: $8.49
/ea
$8.49
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Bore Bushing Series 1108
- Length 0.875 in
- Fastener Tightening Torque Capacity 1,300 in-lb
- Bore Diameter 3/4 in
- Overall Diameter 1.5 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Zoro Select
- MFR # 1108X3/4
- Zoro # G410984690
- UPC # 00195057289901
- Country of Origin China
- Category Tapered & QD Bushings
Dimensions
| Length | 0.875 in |
| Bore Diameter | 3/4 in |
| Overall Diameter | 1.5 in |
| Bolt Circle Diameter | 1.45 in |
| Keyway Width | 3/16 in |
| Keyway Height | 1/16 in |
Details
| Bore Bushing Series | 1108 |
| Fastener Tightening Torque Capacity | 1,300 in-lb |
| Flange Type | Flangeless |
| Bushing Type | Taper Lock |
| System of Measurement | Inch |
| Item | Taper Lock Bushing |
| Includes | (2) Set Screws |
| Taper | 8 Degrees |
| Material | Steel |
| Maximum Torque | 1,300 in-lb |
| For Shaft Type | Keyed |
Description
Taper Lock Bushing, Bushing Type Taper Lock, Bore Bushing Series 1108, Bore Diameter 3/4 in, Length 0.875 in, Bolt Circle Diameter 1.45 in, Bolt Size Not Applicable, System of Measurement Inch, Fastener Tightening Torque Capacity 1,300 in-lb, Flange Type Flangeless, Flange Width Not Applicable, For Shaft Type Keyed, Includes (2) Set Screws, Keyway Height 1/16 in, Keyway Width 3/16 in, Length Less Flange Not Applicable, Material Steel, Overall Diameter 1.5 in, Taper 8 Degrees
