Shop All Tapered & QD Bushings
Zoro Select

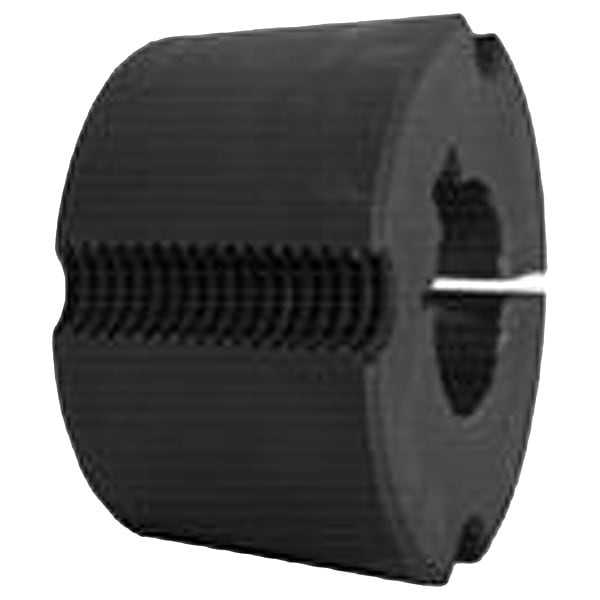

TL Bushing, 1108, 19 mm B Dia, 0.875 in L

product price: $8.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bore Bushing Series 1108
  • Length 0.875 in
  • Material Steel
  • Bore Diameter 19 mm
  • Includes (2) Set Screws
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Length 0.875 in
Bore Diameter 19 mm
Overall Diameter 1.5 in
Bolt Circle Diameter 1.45 in
Keyway Height 2.9 mm
Keyway Width 6 mm

Details

Bore Bushing Series 1108
Material Steel
Item Taper Lock Bushing
Includes (2) Set Screws
Bushing Type Taper Lock
Flange Type Flangeless
Taper 8 Degrees
System of Measurement Metric
For Shaft Type Keyed
Maximum Torque 1,300 in-lb

Description

Taper Lock Bushing, Bushing Type Taper Lock, Bore Bushing Series 1108, Bore Diameter 19 mm, Length 0.875 in, Bolt Circle Diameter 1.45 in, Bolt Size Not Applicable, System of Measurement Metric, Flange Type Flangeless, Flange Width Not Applicable, For Shaft Type Keyed, Includes (2) Set Screws, Keyway Height 2.9 mm, Keyway Width 6 mm, Length Less Flange Not Applicable, Material Steel, Overall Diameter 1.5 in, Taper 8 Degrees
