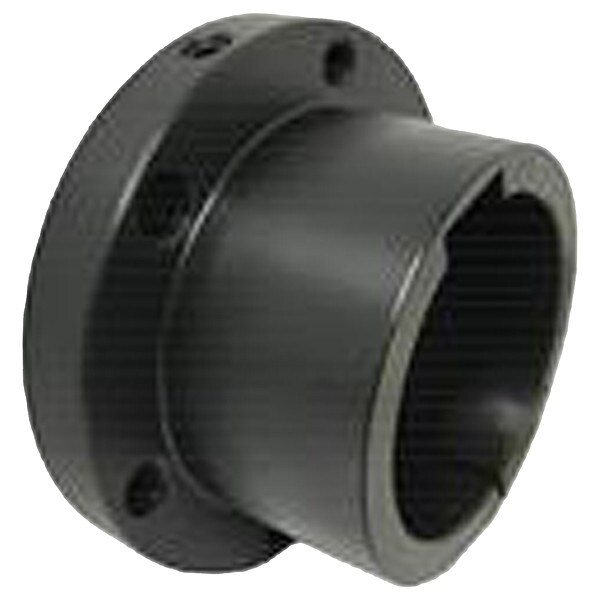

QD Bushing, SK, 60 mm B Dia, 1.875 in L
Mfr # SKX60MM
Zoro # G410984379
product price: $32.85
/ea
$32.85
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Bore Bushing Series SK
- Length 1.875 in
- Material Steel
- Flange Type Split
- Taper 3/4 in Per ft
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Zoro Select
- MFR # SKX60MM
- Zoro # G410984379
- UPC # 00195057202252
- Country of Origin China
- Category Tapered & QD Bushings
Dimensions
| Length | 1.875 in |
| Bolt Size | 5/16"-18 x 2 in |
| Overall Diameter | 3.875 in |
| Flange Width | 1/2 in |
| Bolt Circle Diameter | 3.31 in |
| Bore Diameter | 60 mm |
| Length Less Flange | 1.375 in |
| Keyway Height | 4.6 mm |
| Keyway Width | 18 mm |
| Bushing Diameter | 2.813 in |
Details
| Bore Bushing Series | SK |
| Material | Steel |
| Item | Quick Detachable Bushing |
| Flange Type | Split |
| Taper | 3/4 in Per ft |
| Includes | (3) Cap Screws |
| Bushing Type | Quick Detachable |
| System of Measurement | Metric |
| Fastener Tightening Torque Capacity | 7,000 in-lb |
| For Shaft Type | Keyed |
| Maximum Torque | 7,000 in-lb |
Description
Quick Detachable Bushing, Bushing Type Quick Detachable, Bore Bushing Series SK, Bore Diameter 60 mm, Length 1.875 in, Bolt Circle Diameter 3.31 in, Bolt Size 5/16 In.-18 x 2 in, System of Measurement Metric, Bushing Diameter 2.813 in, Fastener Tightening Torque Capacity 7,000 in-lb, Flange Type Split, Flange Width 1/2 in, For Shaft Type Keyed, Includes (3) Cap Screws, Keyway Height 4.6 mm, Keyway Width 18 mm, Length Less Flange 1.375 in, Material Steel, Overall Diameter 3.875 in
