Shop All Drill Bushing Liners
Zoro Select

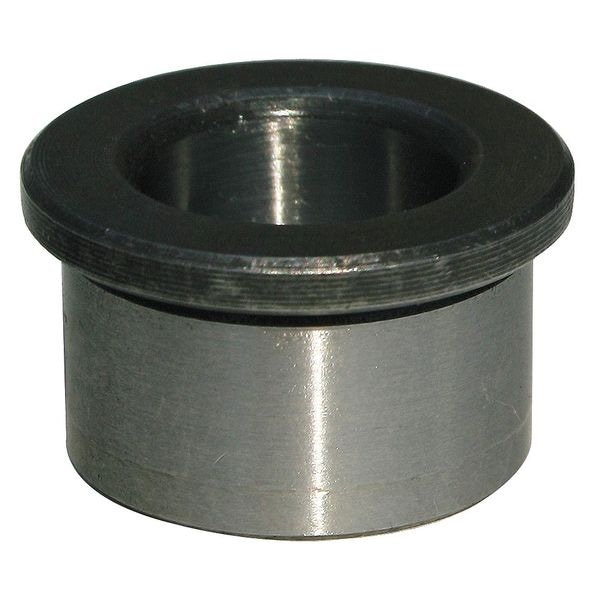

Drill Bushing, Type HL, Drill Size 1-3/8
Mfr # HL11228RA
Zoro # G7233694
product price: $15.69
/ea
$15.69
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Size- Decimal 1-3/8" (1.3750)
- Outside Dia. 1 3/4 in
- Drill Size 1 3/8 in
- Drill Bushing Wall Type Standard Wall
- Measurement System Fractional Inch
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Zoro Select
- MFR # HL11228RA
- Zoro # G7233694
- Country of Origin Multiple
- Category Drill Bushing Liners
Dimensions
Size- Decimal | 1-3/8" (1.3750) |
Outside Dia. | 1 3/4 in |
Drill Size | 1 3/8 in |
Overall Length | 1 3/4 in |
Inside Dia. Tolerance | +0.0001 in /+0.0005 in |
Outside Dia. Tolerance | +0.0019 in /+0.0023 in |
Inside Dia. | 1 3/8 in |
Head Dia. | 1 7/8 in |
Size - Decimal | 1-3/8 in - 1.3750 |
Details
Drill Bushing Wall Type | Standard Wall |
Measurement System | Fractional Inch |
Bushing Head Type | Headed |
Hardness | Rc 62-64 |
Material - Machining | High Speed Steel |
Rockwell Hardness | RC 62-64 |
Decimal Equivalent | 1.3750 |
Item | Drill Bushing Liner |
Concentricity Tolerance | .0005" T.I.R. max |
Material | 52103 Thur Hardened |
Bushing Type | Head Liner |
Heat Treatment | Through Hardened |
Bushing Code | HL |
Description
Headed Liner Drill Bushing (HL), Standard Wall, Headed, Fractional Inch, 1 3/8 in, 1.3750
