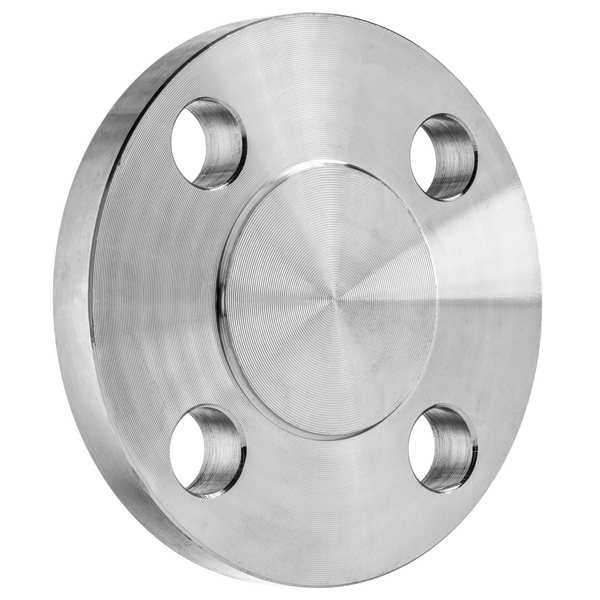

Blind Flange, Flat Face, 3 in, Class 125
Mfr # BULK-PF-483
Zoro # G900424576
Free Shipping & Returns
$95.95
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pipe Fitting Material Aluminum
- Specific Fitting Shape Blind Flange
- Temp. Range 0 Degrees to 270 Degrees F
- Application Air, Non-Potable Water, Oil
- Standards ANSI/ASME B16.1
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Zoro Select
- MFR # BULK-PF-483
- Zoro # G900424576
- UPC # 193005132170
- Country of Origin China
- Category Aluminum Pipe Fittings
Dimensions
Bolt Hole Diameter | 5/8 in |
Flange Outside Diameter | 7 1/2 in |
Overall Length | 7 1/2 in |
Nominal Pipe Size | 3 in |
Details
Item | Blind Pipe Flange |
Pipe Fitting Material | Aluminum |
Specific Fitting Shape | Blind Flange |
Temp. Range | 0 Degrees to 270 Degrees F |
Application | Air, Non-Potable Water, Oil |
Standards | ANSI/ASME B16.1 |
Color | Silver |
Pressure Level | Low Pressure (100-299 psi) |
Maximum Operating Pressure | 125 psi |
Fitting Connection Type | Flanged x Blind |
Class | Class 125 |
Flange Thickness | 3/4 in |
Surface Shape | Flat Face Blind Flange |
Low Lead Compliance Level | Compliant |
For Pipe Schedule | 40 |
Connection Surface | Flat Face |
Number of Bolt Holes | 4 |
Max. Steam Pressure | 185 psi |
Fitting Shape | Flange |
Description
Blind Flange, Flat Face, 3 in Nominal Pipe Size, Flanged x Blind, 7 1/2 in Flange Outside Diameter, 3/4 in Flange Thickness, 7 1/2 in Overall Length, Aluminum, Class Class 125, For Pipe Schedule 40, 125 psi Maximum Operating Pressure, 185 psi Max. Steam Pressure, 0 Degrees to 270 Degrees F, Number of Bolt Holes 4, 5/8 in Bolt Hole Diameter
