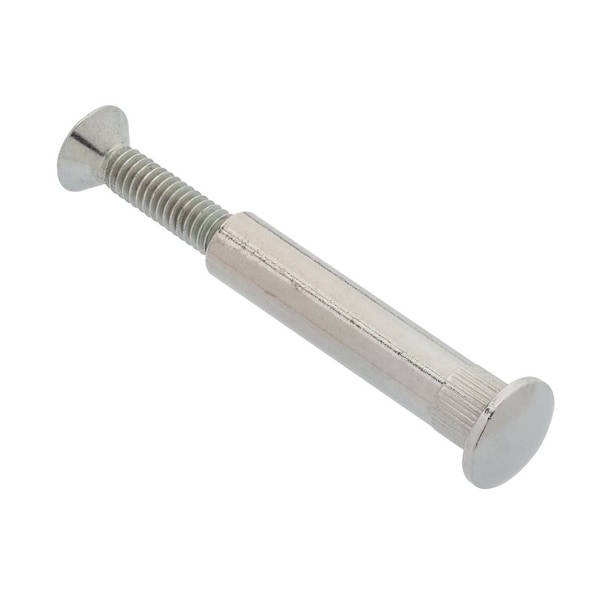

Arch Barrel, #12-24, 1 9/16 in Brl Lg, 5/16 in Brl Dia, Brass Plain
Mfr # Z5120
Zoro # G1614794
$3.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- System of Measurement Inch
- Type Knurled Barrel
- Thread Size #12-24
- Material Brass
- Finish Plain
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Zoro Select
- MFR # Z5120
- Zoro # G1614794
- Country of Origin United States
- Category Binding Barrels
Dimensions
Thread Size | #12-24 |
Barrel Length | 1 9/16 in |
Barrel Diameter | 5/16 in |
Screw Head Height | 0.132 in |
Dia./Thread Size | #12-24 |
Screw Head Dia. | 13/32 in |
Barrel Dia. | 5/16 in |
Screw Thread Length | 1 in |
Barrel Thread Depth | 3/4 in |
Barrel Head Dia. | 1/2 in |
Barrel Head Height | 1/8 in |
Outside Dia. | 5/16" |
Dimensional Standards | AMPG 2000 SB.01 |
Screw Minimum Thread Length | 1 in |
Barrel Head Diameter | 1/2 in |
Screw Size | #12-24 |
Screw Head Diameter | 13/32 in |
Grip Size | 1 3/4 in |
Description
Architectural Bolt, Material Brass, Barrel Head Style Truss, Screw Head Style Flat, Thread Size #12-24, Barrel Length 1 9/16 in, Barrel Diameter 5/16 in, Barrel Thread Depth 3/4 in, Barrel Drive Type No Drive, Screw Drive Style Phillips, Finish Plain, Barrel Head Diameter 0.5 in, Barrel Head Height 1/8 in, Dimensional Standards AMPG 2000 SB.01, Grip Size 1 3/4 in, Includes 82 Degree Screw, Made in North America Yes, Pack Size Small
