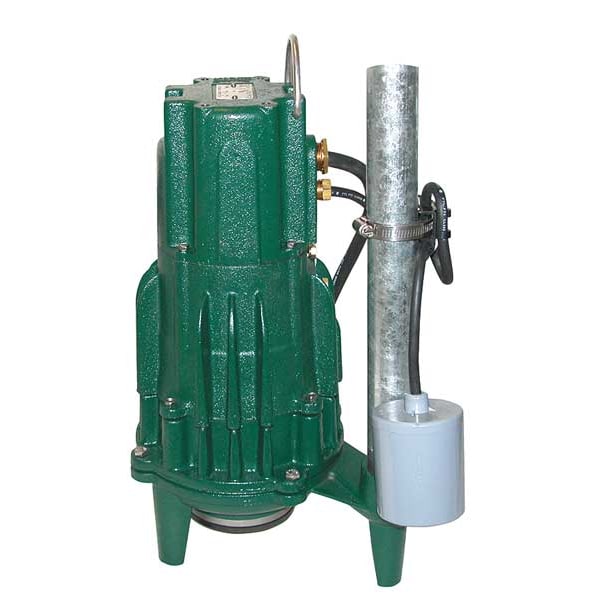

Grinder Pump, Automatic, 2 HP, 230V

Mfr # 820-0011
Zoro # G0486342

$2,083.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

HP 2 hp
Phase - Pumps 1
Switch Actuation Tether Float
Body Material Cast Iron
Base Material Cast Iron

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Zoeller
MFR # 820-0011
Zoro # G0486342
UPC #
053514246167
Country of Origin United States
Category Grinder Pumps

Dimensions

Min. Sump Pit Dia.	24 in
Cord Length - Pumps	20 ft.
Cord Length	20 ft
Manufacturers Warranty Length	1 yr
Diameter	11-5/8"
Height	18-5/8""
Length	11-5/8"
Discharge Dia.	1 1/4 in
Overall Height	18 5/8 in
Overall Length	11 5/8 in
Body Dia.	11 5/8 in

Details

HP	2 hp
Phase - Pumps	1
Switch Actuation	Tether Float
Body Material	Cast Iron
Base Material	Cast Iron
Flow Rate @ 10 Ft. of Head	46 gpm
Max. Head	107 ft
Impeller Material	Engineered Plastic
Impeller Material - Pumps	Polypropylene
GPM of Water @ 40 Ft. of Head	46
GPM of Water @ 5 Ft. of Head	46
Shaft Seal	Carbon Ceramic
Pump HP	2
Motor RPM	3450
Discharge NPT	1-1/4" F
Voltage	230
Thermal Protection	Yes
Max. Liquid Temp.	130 Degrees F
Item - Grinder Pumps	Grinder Pump
GPM of Water @ 45 Ft. of Head	46
Pump Body Material	Cast Iron
Amps	13.7 A
Motor Type	CSCR
Pump RPM	3450
Duty	Intermittent
Phase	1
GPM of Water @ 20 Ft. of Head	46
Shaft Seal Material - Pumps	Carbon, Ceramic
Switch Type - Pumps	Integral
GPM of Water @ 90 Ft. of Head	16
GPM of Water @ 50 Ft. of Head	46
Switch Type	Integral
Agency Compliance	cCSAus, UL
GPM of Water @ 60 Ft. of Head	43
GPM of Water @ 100 Ft. of Head	7
Max. Head - Pumps	107 ft.
GPM of Water @ 15 Ft. of Head	46
Input Phase AC	1
Bearing Type	Ball
GPM of Water @ 55 Ft. of Head	44
Handle	Yes
GPM of Water @ 10 Ft. of Head	46
Voltage - Pumps	240VAC
GPM of Water @ 30 Ft. of Head	46
GPM of Water @ 35 Ft. of Head	46
Item	Grinder Pump
GPM of Water @ 80 Ft. of Head	27
GPM of Water @ 25 Ft. of Head	46
Housing Material	Cast iron
Hz	60
GPM of Water @ 70 Ft. of Head	36
Switch Electrical Connection	Piggyback
Flow Rate @ 15 Ft. of Head	46 gpm
Flow Rate @ 60 Ft. of Head	43 gpm
Flow Rate @ 20 Ft. of Head	46 gpm
RPM	3,450 RPM
Flow Rate @ 40 Ft. of Head	46 gpm
Discharge Standard	NPT
Discharge	1 1/4 in FNPT
Rated Voltage	230V AC
Duty Cycle	Intermittent
Discharge Gender	Female

Description

Grinder Pump, HP 2 hp, Rated Voltage 230V AC, Hz 60, Phase - Pumps 1, Amps 13.7 A, Motor Type CSCR, Body Material Cast Iron, Impeller Material Engineered Plastic, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Flow Rate @ 10 Ft. of Head 46 gpm, Flow Rate @ 15 Ft. of Head 46 gpm, Flow Rate @ 20 Ft. of Head 46 gpm, Flow Rate @ 40 Ft. of Head 46 gpm, Flow Rate @ 60 Ft. of Head 43 gpm, Max. Head 107 ft, Min. Sump Pit Dia. 24 in
