Shop All Diaphragm Pumps
Yamada

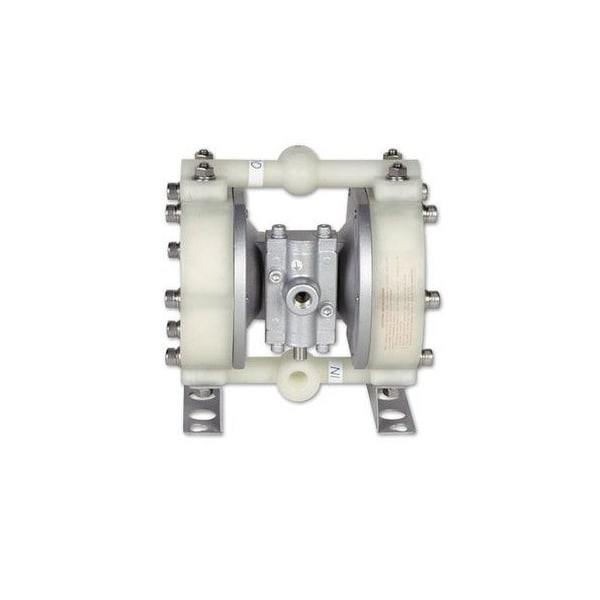

Pump, Model 851843 DP-10 Series, Air Operated Double Diaphragm Pump, PTFE Diaphragm, PTFE
Mfr # DP-10BPT
Zoro # G505663219
product price: $838.99
/ea
Free Shipping & Returns
$838.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Housing Material - Pumps Polypropylene (PPG)
- Diaphragm Material - Pumps PTFE
- Air Inlet Size 1/4" Female NPT (includes ball valve)
- Max. Pressure (PSI) 20 to 100 PSI (1.4 to 7 kgf/cm²)
- Liquid Temp. Range (Deg. F) 212°F (100°C) Max
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Yamada
- MFR # DP-10BPT
- Zoro # G505663219
- Country of Origin Japan
- Category Diaphragm Pumps
Dimensions
Air Inlet Size | 1/4" Female NPT (includes ball valve) |
Details
Housing Material - Pumps | Polypropylene (PPG) |
Diaphragm Material - Pumps | PTFE |
Max. Pressure (PSI) | 20 to 100 PSI (1.4 to 7 kgf/cm²) |
Liquid Temp. Range (Deg. F) | 212°F (100°C) Max |
Description
Yamada Pumps DP-10BPT Flat Check Valve / O-Rings, Polypropylene (PPG) Material, 6 GPM Max Flow, 3/8" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor, 10 Feet Max Suction Lift
