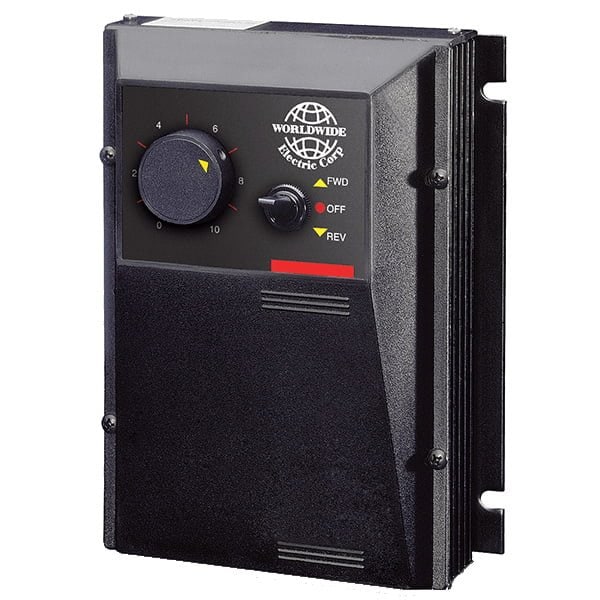

Worldwide Electric Variable Speed DC Motor Control WDCCONTREV, 120 VAC, 1/8 - 1.0 HP
Mfr # WDCCONTREV
Zoro # G205952170
Free Shipping & Returns
$905.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Worldwide Electric
- MFR # WDCCONTREV
- Zoro # G205952170
- Country of Origin China
- Category Speed Reducers
Description
Worldwide electric variable speed dc motor control wdccontrev, 120 vac, 1/8 - 1.0 hp features dual voltage - 120/240 vac, 50/60 hz adjustable horsepower settings barrier terminal strip packaged bridge supply (full wave) 1% speed regulation with armature voltage feedback; 1/2% with tach feedback adjustable minimum speed (0-30% of max.) adjustable maximum speed (66-110% of base) adjustable ir compensation adjustable linear acceleration (0.5-8 sec.) adjustable current limit to 15 amps line voltage compensation 5k ohm speed potentiometer with leads, knob and dial included power on/off switch 50:1 speed range overload capacity: 150% for one minute transient voltage protection voltage following mode or dc tachometer follower by supplying ungrounded analog input signal (0-12 vdc) dc tachometer feedback (6 v at base speed) inhibit circuit - permits start and stop without breaking ac lines remote start/stop via pot circuit or inhibit circuit shunt field supply provided (1 amp max.; 100 v for 120 vac; 200 v for 240 vac input) ac line fuse rated nema 4/12 with threaded conduit holes
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
