Shop All Hydraulic Hose Adapters & Plugs
World Wide Fittings

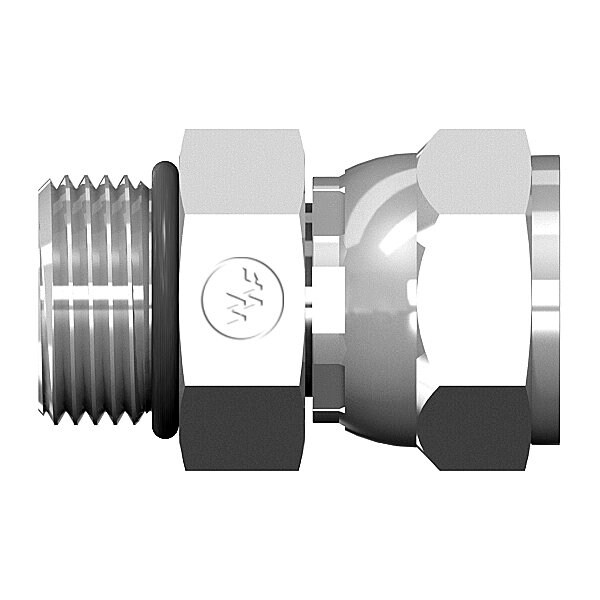

Male O-Ring Boss to Female JIC Swivel Straight
Mfr # 9316X08X08
Zoro # G603654454
product price: $3.35
/ea
Sold in multiples of 3 for $10.05
$10.05
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Hex Size 0.875
- Fitting Thread Type 1 SAE
- Standards Steel 37 Flare (JIC) Fittings meet SAE J514, SAE 1926 and MS\n(Military Specifications).
- Overall Length 1.28
- Fitting Thread Type 2 JIC 37 Degrees Flare Swivel
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand World Wide Fittings
- MFR # 9316X08X08
- Zoro # G603654454
- Country of Origin China
- Category Hydraulic Hose Adapters & Plugs
Dimensions
Hex Size | 0.875 |
Overall Length | 1.28 |
Fitting Thread Size 1 | 3/4-16 |
Length | 1.65 |
Fitting Thread Size 2 | 3/4-16 |
Overall Length (mm) | 32.512 |
Hex Size (mm) | 22.225 |
Details
Fitting Thread Type 1 | SAE |
Standards | Steel 37 Flare (JIC) Fittings meet SAE J514, SAE 1926 and MS\n(Military Specifications). |
Fitting Thread Type 2 | JIC 37 Degrees Flare Swivel |
Material | Steel |
Weight | 0.152 |
End 1 Hex | 0.875 |
Adapter Type | Elbow and Straights |
End 1 Hex (Metric) | 22.225 |
Body Material | Steel |
End 1 Connection Type | Male |
End 2 Connection Type | Female |
