Shop All Hydraulic Hose Adapters & Plugs
World Wide Fittings

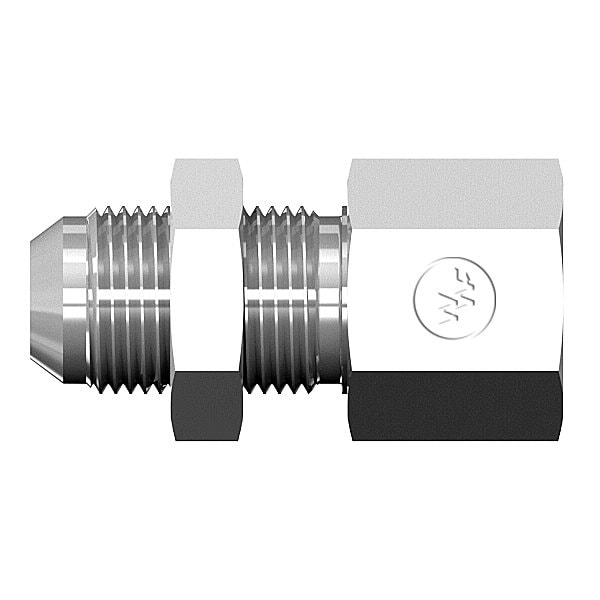

Male JIC Bulkhead to Female Pipe Straight - With Locknut
Mfr # 5275X16X16LN
Zoro # G203654069
product price: $14.15
/ea
$14.15
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Material Steel
- Fitting Thread Type 2 NPT
- Standards Steel 37 Flare (JIC) Fittings meet SAE J514, SAE 1926 and MS\n(Military Specifications).
- Overall Length 3.24
- Fitting Thread Size 2 1-11-1/2
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand World Wide Fittings
- MFR # 5275X16X16LN
- Zoro # G203654069
- Country of Origin China
- Category Hydraulic Hose Adapters & Plugs
Dimensions
Overall Length | 3.24 |
Fitting Thread Size 2 | 1-11-1/2 |
Hex Size | 1.625 |
Fitting Thread Size 1 | 1-5/16-12 |
Hex Size (mm) | 41.275 |
Overall Length (mm) | 82.296 |
Details
Material | Steel |
Fitting Thread Type 2 | NPT |
Standards | Steel 37 Flare (JIC) Fittings meet SAE J514, SAE 1926 and MS\n(Military Specifications). |
Fitting Thread Type 1 | JIC 37 Degrees Flare |
Weight | 0.9124 |
End 1 Hex | 1.625 |
Adapter Type | Elbow and Straights |
End 1 Connection Type | Male |
End 1 Hex (Metric) | 41.275 |
Body Material | Steel |
End 2 Connection Type | Female |
