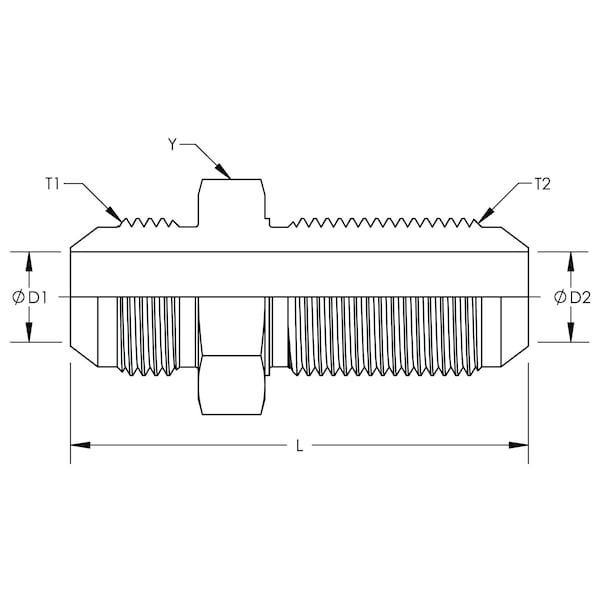

JIC Bulkhead Union Stainless Steel
Mfr # 2700X12X12SS
Zoro # G100452263
product price: $29.29
/ea
$29.29
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Fitting Thread Type 2 JIC 37 Degrees Flare
- Standards Stainless fittings meet SAE J514, SAE J1453, and SAE J1926 specifications.
- Overall Length 3.09
- Fitting Thread Type 1 JIC 37 Degrees Flare
- Hex Size 1.375
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand World Wide Fittings
- MFR # 2700X12X12SS
- Zoro # G100452263
- Country of Origin China
- Category Hydraulic Hose Adapters & Plugs
Dimensions
| Overall Length | 3.09 |
| Hex Size | 1.375 |
| Fitting Thread Size 1 | 1-1/16-12 |
| Fitting Thread Size 2 | 1-1/16-12 |
| Hex Size (mm) | 34.925 |
| Overall Length (mm) | 78.486 |
Details
| Fitting Thread Type 2 | JIC 37 Degrees Flare |
| Standards | Stainless fittings meet SAE J514, SAE J1453, and SAE J1926 specifications. |
| Fitting Thread Type 1 | JIC 37 Degrees Flare |
| Material | Stainless Steel |
| Body Material | Stainless Steel |
| End 2 Connection Type | Male |
| End 1 Connection Type | Male |
| Adapter Type | Elbow and Straights |
