Woods Powr-Grip

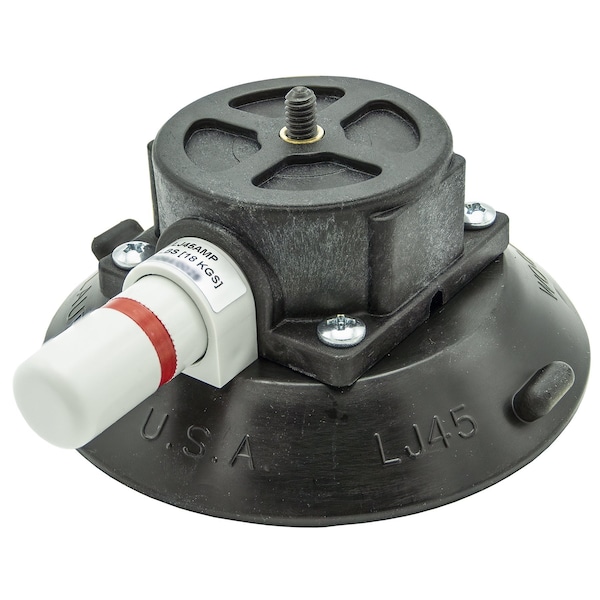

Suction Cup Mount, 4.5 Dia, 1/4-20x3/8
Mfr # LJ45AMP1420T38L
Zoro # G0779606
Free Shipping & Returns
$84.89
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Cup Size 4-1/2 in Dia
- Mounting Type Threaded Stud
- Max. Load Capacity 40 lb
- Includes Vacuum Pad Protector
- Mounting Size 1/4"-20 x 3/8 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Woods Powr-Grip
- MFR # LJ45AMP1420T38L
- Zoro # G0779606
- UPC # 718127912006
- Country of Origin United States
- Category Manual Lifting Magnets & Vacuum Cups
Dimensions
Cup Size | 4-1/2 in Dia |
Mounting Size | 1/4"-20 x 3/8 in |
Mounting Thread Size | 1/4"-20 |
Cup Diameter | 4 1/2 in |
Details
Item | Suction Cup Mount |
Mounting Type | Threaded Stud |
Max. Load Capacity | 40 lb |
Includes | Vacuum Pad Protector |
Cup Type | Concave |
Features | Check Valve, Red-Line Indicator Warns User of Any Significant Vacuum Loss |
Platform Material | Polycarbonate |
Product Type | Suction Cup Mount |
Number of Cups | 1 |
Minimum Operating Temperature | 0 Degrees F |
Maximum Operating Temperature | 120 Degrees F |
Mount Type | Threaded Stud |
Maximum Load Capacity | 40 lb |
Cup Material | Rubber |
Release Mechanism | Pull Tab |
Compatible Surface Type | Curved Surfaces, Flat Surfaces |
Description
Suction Cup Mount, Product Type Suction Cup Mount, Cup Type Concave, Mount Type Threaded Stud, Maximum Load Capacity 40 lb, Cup Diameter 4 1/2 in, Cup Material Rubber, Release Mechanism Pull Tab, Handle Type Not Applicable, Mounting Thread Size 1/4 In.-20, Compatible Surface Type Curved Surfaces, Flat Surfaces, Minimum Operating Temperature 0 Degrees F, Maximum Operating Temperature 120 Degrees F, Includes Vacuum Pad Protector, Number of Cups 1, Handle Length Not Applicable
