  9. Temperature Alarm, 0 to 2 hr. Delay
Shop All Thermometer Accessories
Winland Electronics

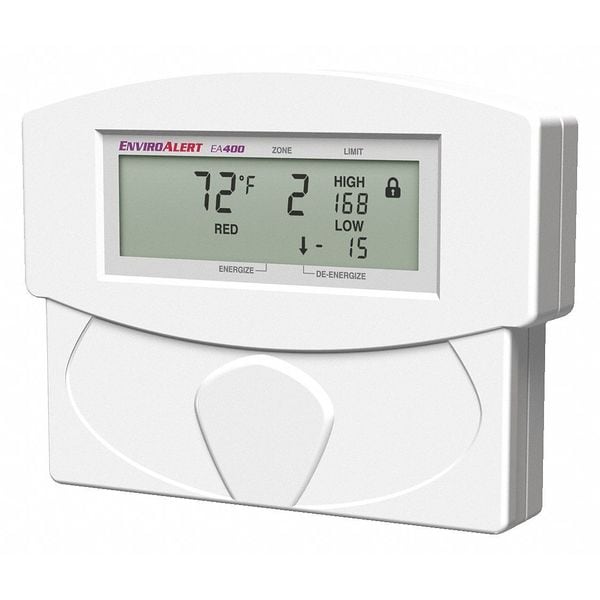

Temperature Alarm, 0 to 2 hr. Delay

product price: $307.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Temp. Range -58 Degrees to 299 Degrees F
  • Power Source Plug-In, Power from Alarm Panel
  • Width 6 in
  • Height 4 3/4 in
  • Depth 1 1/4 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Width 6 in
Height 4 3/4 in
Depth 1 1/4 in

Details

Item Temperature Alarm
Temp. Range -58 Degrees to 299 Degrees F
Power Source Plug-In, Power from Alarm Panel
Indication Audible
Includes Mounting Equipment, Instructions
Features Simultaneous Operation of Both Zones, Defrost Time Delay Up to 2 hr, Easy to Read Large LCD Display, Eight Event Alarm Memory with Time and Date, Auxiliary Output Relay for Local Audible Alarm, Auxiliary Alarm Silence Feature with 10 Minute Timer, Each Zone Has Offset Calibration Adjustment, Temperature and Humidity High/Low Set Points, Output Relays Can Be Configured to Be Initially Energized or De-Energized, Tamper Proof Lock Setting, Snap Fit Mounting Base with Main Housing for Easy Access, Plug In Terminal Strip Connectors for Easier Wire Termination, Zones Being Monitored are Displayed Every Few Seconds, Display F Degrees , C Degrees , % (Humidity) or Water Drop Icon, Zone Configuration Retained In Memory If Power is Lost
Time Delay 120 min
Contact Rating 1 A @ 30V DC (Configurable)
Number of Zones 4
Includes Batteries No
Operating Temperature Range 32 Degrees to 122 Degrees F
Backlit No
Alarm Temperature Range -58 Degrees to 299 Degrees F/-50 Degrees to 150 Degrees C
Alarm Outputs (1) Auxiliary Form C Relay (N.O./N.C.) Non-Configurable, (4) Form C Relays (N.O./N.C.) 1A @ 30V DC Configurable
Display Features Graphic LCD Data with Flashing Alarm
Voltage 11 to 14V DC
Maximum Alarm Temperature 299 Degrees F
Minimum Alarm Temperature -58 Degrees F
Sensor Configuration 4
Alarm Type High/Low
Power Source Details 11 to 14V DC

Description

Temperature Alarm, Alarm Temperature Range -58 Degrees to 299 Degrees F/-50 Degrees to 150 Degrees C, High/Low, Contact Rating 1 A @ 30V DC (Configurable), Number of Zones 4, Sensor Configuration 4, Alarm Outputs (1) Auxiliary Form C Relay (N.O./N.C.) Non-Configurable, (4) Form C Relays (N.O./N.C.) 1A @ 30V DC Configurable, Includes Batteries No, 11 to 14V DC, Mounting Location Surface Mount
