Shop All Air Line Lockout Valves
Wilkerson

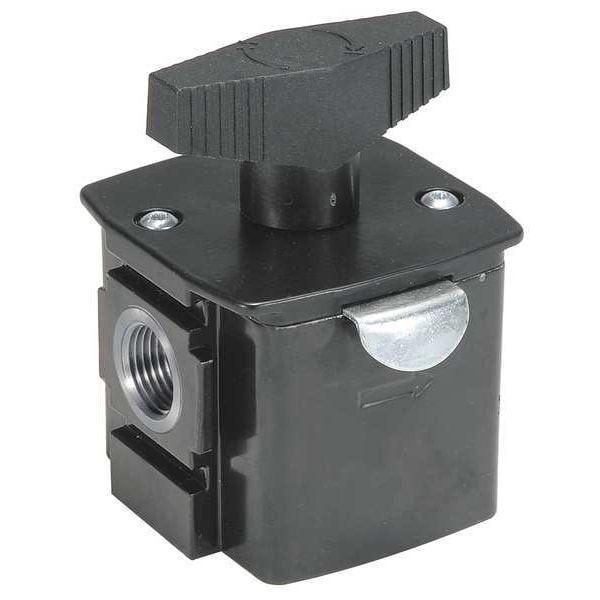

Lock Out Ball Valve, 3/4 in. NPT, 675 cfm
Mfr # V73-06-B000B
Zoro # G1994800
product price: $83.19
/ea
Free Shipping & Returns
$83.19
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- NPT (In.) 3/4 in
- Max. Flow (CFM) 675
- Max. Pressure (PSI) 250 psi
- Max. Temp. (F) 176 Degrees F
- Color Black
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Wilkerson
- MFR # V73-06-B000B
- Zoro # G1994800
- Country of Origin China
- Category Air Line Lockout Valves
Dimensions
Air Inlet Size | 3/4 in |
Overall Width | 3 9/16 in |
Overall Height | 3 9/16 in |
Overall Depth | 3 1/4 in |
Air Outlet Size | 3/4 in |
Description
Air Line Lockout Valve, Air Inlet Size 3/4 in, Air Inlet Type NPT, Air Outlet Size 3/4 in, Air Outlet Type NPT, Maximum Operating Pressure 246 psi, Maximum Operating Temperature 176 Degrees F, Series V73, Body Material Aluminum, Maximum Flow Rate 678 cfm, Modular Connection Modular Connection, Number of Air Inlets 1, Number of Air Outlets 1, Overall Depth 3 1/4 in, Overall Height 3 9/16 in, Overall Width 3 9/16 in, Seal Material PTFE, Standards CE, REACh, RoHS, System Location Air Line
