Widia
Thread Turning Toolholder, NSR163D
Mfr # NSR163D
Zoro # G3763311
product price: $124.99
/ea
Free Shipping & Returns
$124.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Shank Shape Square
- Overall Length 152.40mm
- Insert Size 3
- Shank Length 4-3/4"
- Cutting Direction Right Hand
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Widia
- MFR # NSR163D
- Zoro # G3763311
- UPC # 4021169721434
- Country of Origin Brazil
- Category Indexable Toolholders

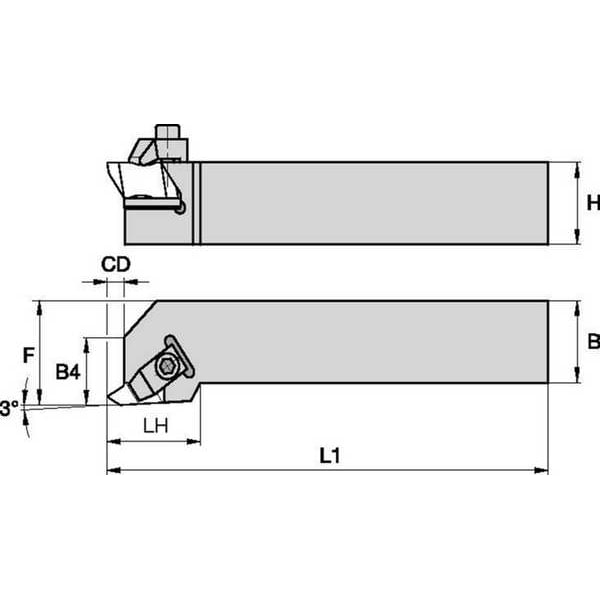

Dimensions
Overall Length | 152.40mm |
Insert Size | 3 |
Shank Length | 4-3/4" |
Shank Height | 1 in |
Shank Width | 1 in |
Depth of Cut | 5.33mm |
Head Length | 1-1/4" |
Details
Item | Indexable Thread Turning Tool Holder |
Shank Shape | Square |
Cutting Direction | Right Hand |
Rake | 0 Degrees Axial, 0 Degrees Radial |
Shank Material | High Speed Steel |
Insert Style | N.3R |
Coolant Fed | Non-Coolant Through |
Cutting Application | Face Grooving, Grooving |
ANSI Code | NSR163D |
Center to Cutting Tip | 1" |
Insert Holding Type | Top Clamping |
Toolholder Style | NS |
ISO Number | NSR163D |
Measurement System | Fractional Inch |
Description
Indexable Thread Turning Tool Holder, Cutting Direction Right Hand, Rake 0 Degrees Axial, 0 Degrees Radial, Shank Width 1 in, Shank Height 1 in, Overall Length 152.40mm
