Shop All Indexable Toolholders
Widia

Grooving/Parting Toolholder, WMT, RH

product price: $142.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series WMT
  • Shank Shape Square
  • Insert Shape Bottom
  • Cutting Direction Right Hand
  • Shank Length 3.6950 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

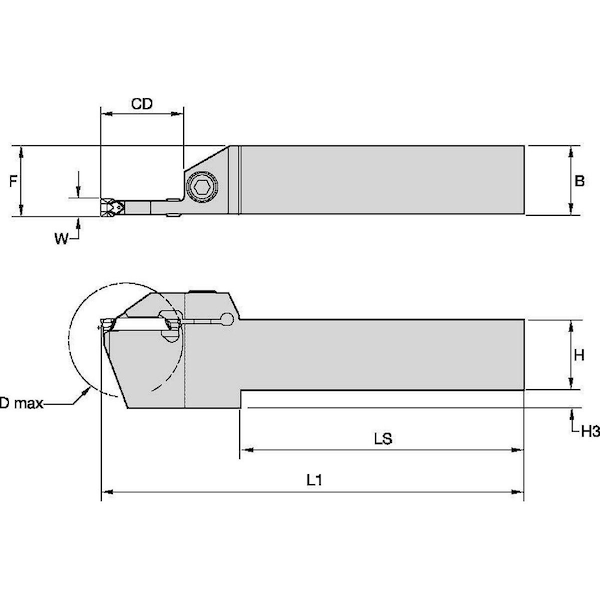

Dimensions

Shank Length 3.6950 in
Overall Length 5 in
Shank Height 3/4 in
Max. Grooving Width 2.39mm
Depth of Cut 0.4200 in
Shank Width 3/4 in

Details

Item Indexable Grooving and Parting Toolholder
Series WMT
Shank Shape Square
Insert Shape Bottom
Cutting Direction Right Hand
Material High Speed Steel
Clamp Screw 4 mm
Coolant Fed Non-Coolant Through
Toolholder Style WMT
ANSI Code WMTSR122B042
Cutting Application Cut-Off, Grooving, Profiling, Turning
ISO Number WMTSR122B042
Measurement System Decimal Inch
Lead Angle 90 Degrees

Description

Indexable Grooving and Parting Toolholder, Right Hand, Cut-Off, Grooving, Profiling, Turning, Shank Width 3/4 in, ANSI Code WMTSR122B042, Coolant Fed Non-Coolant Through
