Shop All Indexable Toolholders
Widia

Grooving/Parting Toolholder, WMT, LH

product price: $165.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series WMT
  • Shank Shape Square
  • Material High Speed Steel
  • Insert Shape Bottom
  • Clamp Screw 5 mm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

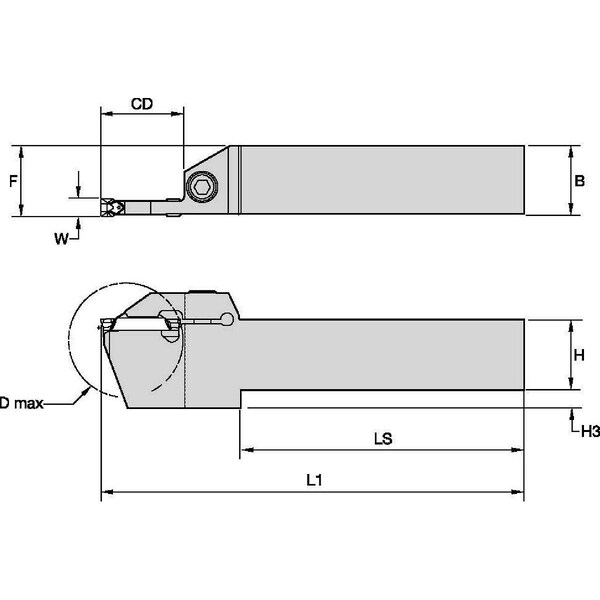

Dimensions

Overall Length 6 in
Shank Length 106.02mm
Depth of Cut 1 in
Shank Width 1 in
Shank Height 1 in
Max. Grooving Width 1/4 in

Details

Item Indexable Grooving and Parting Toolholder
Series WMT
Shank Shape Square
Material High Speed Steel
Insert Shape Bottom
Clamp Screw 5 mm
Cutting Direction Left Hand
ISO Number WMTSL166100
ANSI Code WMTSL166100
Cutting Application Cut-Off, Grooving, Profiling, Turning
Coolant Fed Non-Coolant Through
Toolholder Style WMT
Measurement System Decimal Inch
Lead Angle 90 Degrees

Description

Indexable Grooving and Parting Toolholder, Left Hand, Cut-Off, Grooving, Profiling, Turning, Shank Width 1 in, ANSI Code WMTSL166100, Coolant Fed Non-Coolant Through
