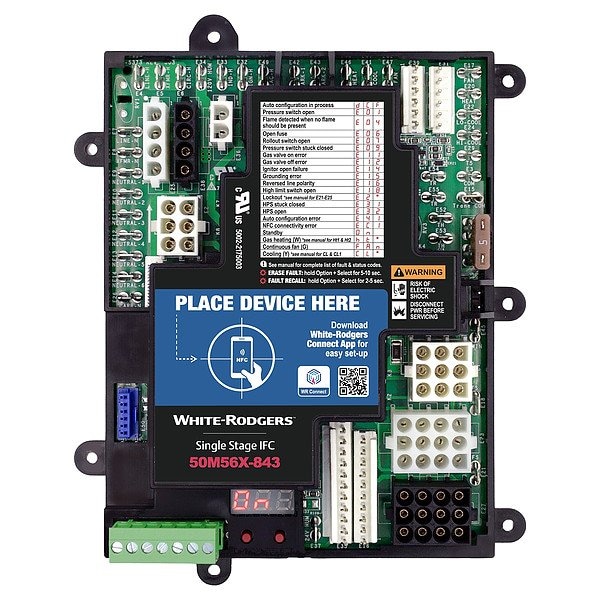

Furnace Control Board, 25V AC

Mfr # 50M56X-843
Zoro # G108665146

$211.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Standards cULus Listed
Includes Nitride Ignitor
Maximum Operating Temperature 175 Degrees F
Replacement Type Universal
Terminal Designations C, DHUM, G, R, W, Y/Y2, Y1

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand White-Rodgers
MFR # 50M56X-843
Zoro # G108665146
UPC #
786710566837
Country of Origin Mexico
Category Furnace and Heater Parts

Dimensions

Overall Width	6 1/2 in
Overall Height	8 1/4 in
Overall Depth	1 1/2 in

Details

Item	Furnace Control Board
Standards	cULus Listed
Includes	Nitride Ignitor
Maximum Operating Temperature	175 Degrees F
Replacement Type	Universal
Terminal Designations	C, DHUM, G, R, W, Y/Y2, Y1
Control Voltage	25 V
Product Type	Furnace Control Board
Number of Stages	1
Minimum Operating Temperature	-40 Degrees F
Compatible with Brand	American Standard, Carrier, Climatic, Fedders, Goodman, Goodman/Amana, GW Berkheimer, HD Supply, Honeywell, Hughes Supply, ICM, Johnstone Supply, Lennox, Metropac, Mortex, Nordyne, Nortek, Rheem, Texas Instruments, Thermo Products, Trane, United Technologies, Whirlpool, White-Rodgers, York
Control Mounting Type	Flush Mount
Items Controlled	Blowers
Ignition Type	Hot Surface Igniter
Input Voltage	25V AC
OEM Replacement Part Number	0130F00005, 0130F00005S, 031-00662, 031-00662-000, 031-00662-700, 031-00662000, 031-01140-000, 031-01140-001, 031-01140-002, 031-01140-701, 031-01140-702, 031-01234-000, 031-01234-700, 031-01235-000, 031-01235-700, 031-01250-000, 031-01250-700, 031-01266-000, 031-01266-700, 031-01267-00, 031-01267-000, 031-01267-001, 031-01267-001A, 031-01284-000, 031-01933-000, 031-01972-000, 031-01973-000, 031-02166-000, 031-09166-000, 031-09167-000, 031.01234.000, 03101250000, 084141, 100925-01, 100925-02, 100925-03, 100973-01, 100973-02, 1010806, 1012-83-9336A, 1012-83-9336AHSC1, 1012-83-9337A, 1012-83-9559B, 1012-83-9651B, 1012-83-9673A, 1012-925A, 1012-925B, 1012-925C, 1012-933D, 1012-955A, 1012-967, 1012-968, 1012-969, 1012-969A, 1012-977A, 1012933D, 1012955A, 102077-02, 102077-03, 102077-04, 102077-06, 102077-09, 102077-10, 102077-14, 102077-17, 102077-19, 10207701, 10207702, 10207703, 10207704, 10207706, 10207710, 10207714, 10207715, 10207717, 10207718, 10207719, 10207720, 10207720S, 103085-01, 103085-02, 103085-03, 103098-01, 103217-01, 103217-02, 103217-03, 10M93, 10M9301, 115Z36, 115Z39, 1162-201, 1162-202, 1162-83-202, 1162-83-202A, 116J02, 117284, 1183386, 1184412, 1184594, 1184783, 1186024, 1186115, 1195-100, 1195-83-100A, 1214201, 124110, 12L42, 12L4201, 12L69, 12L6901, 1380-686, 1380-699, 1380686, 1380698, 1380699, 14028, 14029, 14030, 14031, 16C81, 17W70, 17W7001, 17W92, 17W9201, 1809913, 194300330001, 20394001, 21D83M-843, 23W51, 23W5101, 265901, 265902, 30757, 30W25, 30W2501, 31011140002, 3101250000, 3101973000, 32M88, 32M8801, 331-01933-000, 331-01972-000, 331-01972-200, 331-03010-000
Maximum Relative Humidity	93 %
Twinning Compatibility	Twinning Compatible
Minimum Relative Humidity	5 %
Igniter Voltage	120V AC
Connection Interface Type	6-Pin Interface
Compatible Inducer Motor Type	Electronically Commutated, Permanent Split Capacitor
Board Type	Integrated
Compatible Blower Motor Type	Permanent Split Capacitor

Description

Furnace Control Board, Replacement Type Universal, Board Type Integrated, Compatible with Brand American Standard, Carrier, Climatic, Fedders, Goodman, Goodman/Amana, GW Berkheimer, HD Supply, Honeywell, Hughes Supply, ICM, Johnstone Supply, Lennox, Metropac, Mortex, Nordyne, Nortek, Rheem, Texas Instruments, Thermo Products, Trane, United Technologies, Whirlpool, White-Rodgers, York
