  11. Cone Type Puller, 3 ton Cap, 2 or 3 Jaws
Shop All Pullers
Westward

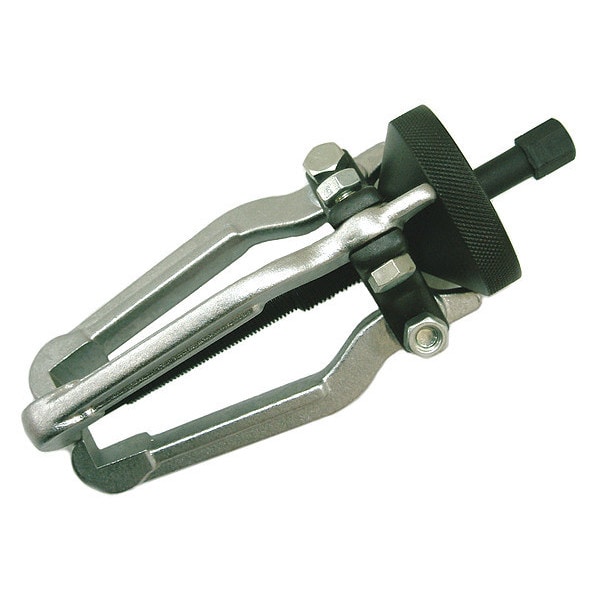

Cone Type Puller, 3 ton Cap, 2 or 3 Jaws

product price: $79.95
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Includes (3) Jaw, 6 oz Thread and Screw
  • Features Turning the Cone on the Puller Head Locks Jaws on Parts to be Removed Safely
  • Jaw Reach 2 7/8 in
  • Capacity 3 ton
  • For Use With Slide Hammers
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

  • Brand Westward
  • MFR # 23MD18
  • Zoro # G5307425
  • UPC #
    190735776742
  • Country of Origin Taiwan, Province of China
  • Category Pullers

Dimensions

Screw Size 7/16"-20
Puller Length 5 in
Screw Size1 7/16"-20
Jaws Width 5 in

Details

Item Cone Type Puller
Includes (3) Jaw, 6 oz Thread and Screw
Features Turning the Cone on the Puller Head Locks Jaws on Parts to be Removed Safely
Jaw Reach 2 7/8 in
Capacity 3 ton
For Use With Slide Hammers
Jaw Style Reversible
Locking Yes
Number of Jaws Convertible 2 and 3
Jaw Spread 4 1/2 in 5 in
Includes Locking Mechanism No
Jaw Spread - Maximum 5 in
Jaw Thickness 0.5
Jaw Reach1 2 7/8 in
Jaw Orientation External, Internal
Max Jaw Spread Less than 6"
Compatible with Product Type Slide Hammers
Pulling Capacity 3 ton
Max Jaw Reach Less than 5"

Description

Cone Type Puller, Locking, Capacity 3 ton, Number of Jaws 2 or 3, Reversible, Cone, Jaw Reach 2-7/8 In., Jaw Spread 5 and 4-1/2 In., 7/16-20 Screw Size, Steel, Puller Length 8 In., For Use With Slide Hammers, Turning the Cone on the Puller Head Locks Jaws on Parts to be Removed Safely., Includes (3) Jaw, 6 oz. Thread and Screw
