  11. Westgate ODC-100 Transformers - 120V Input - 12 Volt Output Outdoor 100W
Shop All Transformers
Westgate

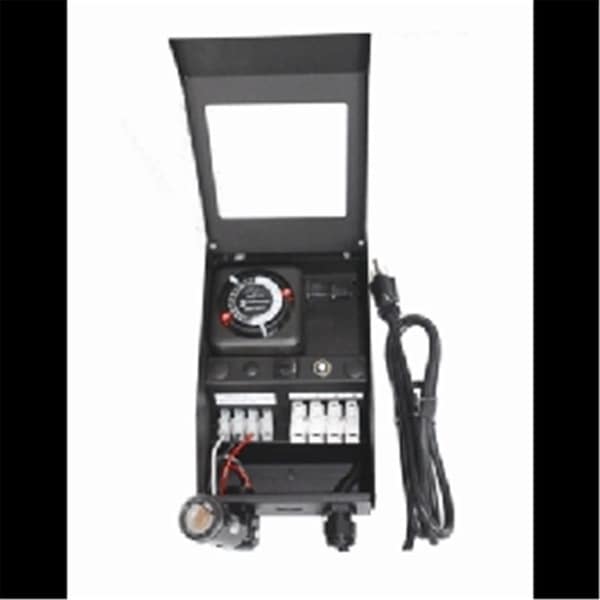

Westgate ODC-100 Transformers - 120V Input - 12 Volt Output Outdoor 100W

product price: $127.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Details

Item Transformer

Description

Features
  • Output voltage in table chart with 120VAC applied and fully loaded.
  • Enclosure Temperature does not exceed 65°C in a 40°C ambient, fully loaded.
  • The actual transformer (xxxVA) is encapsulated in the enclosure.
  • The transformer is dimmable with all dimmers that provide symmetrical form of the current under any condition.
  • Input leads are 16 or 18 AWG output leads are 12 AWG. Lead insulation is 105°C.
  • The transformer uses a class B (130°C) insulation system.
  • The transformer has a manual reset thermal 2A or 3A circuit breaker on the primary side, or 6A breaker on the secondary side indicated by the marked check box on the label.
  • Wiring compartment has 2 or 3 knockouts sized for 3/4 inch screw cable connectors.
  • The wiring compartment cover hinged with rivets and opens vertically from bottom to top.
  • The enclosure, available in black powder coated is NEMA 3R rated.
  • The Transformer is UL listed.
  • The label contains Techno magnet's catalog number and electrical rating.
  • All transformers come with 6 in. wire length.
  • Include Boost Tap will increase output by 10% - for longer runs.
Specification
  • Max Load - 100W.
  • Input - 120V/60HZ.
  • Output.
    • 120AC - 12V.
    • Boost - 12V.
  • Input Current - 1.4A.
  • Open Circuit Current - 0.5A.
Technical Specifications
  • Heavy-duty NEMA 3R enclosure.
  • 120-volt primary-12-volt secondary with 13-volt boost tap.
  • Wired for timer or photocell.
  • Prewired 6 ft. cord and plug (3 conductor / 18ga SJT).
  • Manual reset 20A circuit breaker on the secondary side.
  • Screw-type terminal blocks for output wires (8-14 gauge.
  • Enclosure temperature does not exceed 65° c fully-loaded.
  • UL listed encapsulated transformer for longer life.
  • Transformer is dimmable using low-voltage magnetic dimmers.
  • Wiring compartment has(3)3/4 in. Knockouts.
  • NEMA 3R enclosure with Polyester powder coat.
  • Finish - Black.
