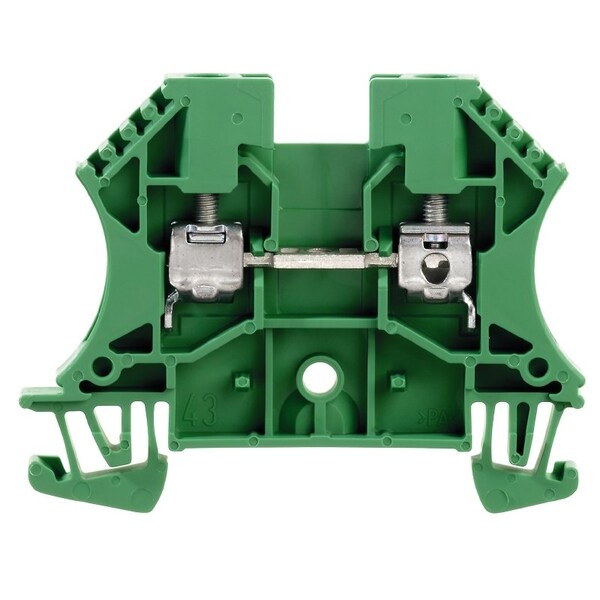

Modular Terminal Block 35A 4Mm2 1 Deck(S)

Mfr # 1020160000
Zoro # G805797799

$1.45

Sold in multiples of 80 for $116.00

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Standards IEC 60947-7-1
Material Wemid
Wire cross-section, finely stranded, two clampable wires, max. 1.5 mm²
Current size B (CSA) 35 A
Rated impulse withstand voltage 8 kV

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Weidmuller
MFR # 1020160000
Zoro # G805797799
Country of Origin Germany
Category Terminal Blocks

Dimensions

Current size B (CSA)	35 A
Depth including DIN rail	47 mm
Depth (inches)	1.831 inch
Voltage size C (CSA)	600 V
Current size C (UR)	35 A
Stripping length	10 mm
Conductor size Field wiring min. (UR)	22 AWG
Height (inches)	2.362 inch
Conductor size Factory wiring max. (UR)	10 AWG
Current size C (CSA)	35 A
Conductor size Factory wiring min. (UR)	26 AWG
Width (inches)	0.24 inch
Conductor size Field wiring max. (UR)	10 AWG
Blade Size	0.6 x 3.5 mm
Voltage size C (UR)	600 V

Details

Standards	IEC 60947-7-1
Material	Wemid
Wire cross-section, finely stranded, two clampable wires, max.	1.5 mm²
Rated impulse withstand voltage	8 kV
Wire cross section max. (IECEX)	4 mm²
Wire cross section max. (ATEX)	4 mm²
Clamping range, min.	0.13 mm²
Continuous operating temp., min.	-60 °C
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.	0.5 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Current (IECEX)	32 A
Torque level with DMS electric screwdriver	2
Number of potentials	1
Twin wire-end ferrules, max.	2.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²
Number of connections	2
Rail	TS 35
Connection direction	on side
UL 94 flammability rating	V-0
Storage temperature, min.	10 °C
Twin wire-end ferrules, min.	0.5 mm²
Version	Screw connection, for plug-in cross-connector, for screwable cross-connection, One end without connector
Max. voltage (ATEX)	690 V
Number of Levels	1
UL File Number Search	E60693
Number of similar terminals	1
Wire connection cross section AWG, max.	AWG 10
Certificate No. (UR)	E60693
Wire connection cross-section, solid core, max.	6 mm²
Tightening torque, max.	1 Nm
Current at maximum wires	41 A
End cover plate required	Yes
Current (ATEX)	32 A
PE connection	No
Wire cross section max. (CSA)	10 AWG
Wire connection cross section, finely stranded, max.	6 mm²
Certificate No. (IECEX)	IECEXULD14.0005U
Pollution severity	3
Rated current	32 A
Rated voltage	800 V
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Volume resistance according to IEC 60947-7-x	1 mΩ
Storage temperature, max.	40 °C
Approvals	CE, CSA, CSAEX, CURUSEX, DEMKOATEX, DNV GL, EAC, IECEXULD, INMETRO, KEMAKEUR, LLOYDSREG, MARITREG, NEMKO, UR
Wire cross section min. (CSA)	26 AWG
Certificate No. (ATEX)	DEMKO14ATEX1338U
Connection cross-section, stranded, min.	1.5 mm²
Number of potentials per tier	1
Rated cross-section	4 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.	1.5 mm²
Operating Temperature Range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Number of clamping points per level	2
Power loss in accordance with IEC 60947-7-x	1.02 W
PE function	No
Storage temperature	10°C...40°C
Marking EN 60079-7	Ex eb II C Gb
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	4 mm²
Wire connection cross section AWG, min.	AWG 26
Tightening torque, min.	0.5 Nm
Continuous operating temp., max.	130 °C
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Gauge to IEC 60947-1	A4
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Type of connection	Screw connection
Max. voltage (IECEX)	690 V
Clamping screw	M 3
Connection cross-section, stranded, max.	6 mm²
Clamping range, max.	6 mm²
Type of mounting	Snap-on
Certificate No. (CSA)	200039-1057876
Colour	green
Wire connection cross section, finely stranded, two clampable wires, min.	0.5 mm²
Open sides	right
