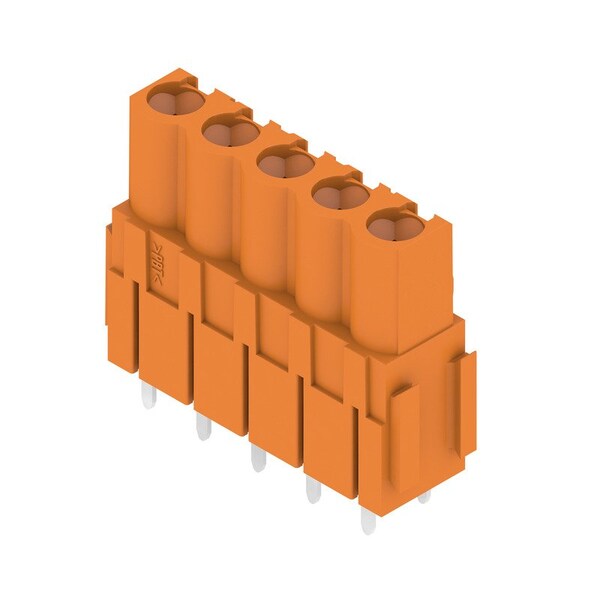

Barrier Strip Terminal Block 10A 1 Row(S)

Mfr # 1682760000
Zoro # G205797740

$2.69

Sold in multiples of 35 for $94.15

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Number of Poles 5
Colour orange
Insulation strength ≥108 Ω
Plugging force/pole, max. 5 N
Mounting onto the PCB THT solder connection

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Weidmuller
MFR # 1682760000
Zoro # G205797740
Country of Origin Germany
Category Terminal Blocks

Dimensions

Solder pin dimensions	0.4 x 1.00 mm
Solder pin length tolerance	+0.1 / -0.3 mm
Solder eyelet hole diameter (D)	1.3 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
VPE length	30 mm
VPE height	350 mm
Solder pin length (l)	3.2 mm
VPE width	135 mm

Details

Number of Poles	5
Colour	orange
Insulation strength	≥108 Ω
Plugging force/pole, max.	5 N
Mounting onto the PCB	THT solder connection
Pulling force/pole, max.	5 N
Pitch in inches (P)	0.2 inch
Institute (UR)	UR
Type of connection	Board connection
Institute (CSA)	CSA
Number of solder pins per pole	2
Volume resistance	4.50 mΩ
Plugging cycles	25
Rated voltage (Use group D / CSA)	300 V
Certificate No. (CSA)	200039-1121690
Pin series quantity	1
UL 94 flammability rating	V-0
Layer structure of plug contact	4-6µm Sn hot-dip tinned
Insulating material	PBT GF
Tolerance of solder pin position	± 0.1 mm
Colour chart (similar)	RAL 2000
Rated current, min. number of poles (Tu=40°C)	20 A
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Temperature range, installation, max.	100 °C
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated voltage (Use group B / CSA)	300 V
Layer structure of solder connection	4-6µm Sn hot-dip tinned
Certificate No. (UR)	E60693
Rated voltage (Use group B / UL 1059)	300 V
Rated voltage for surge voltage class / pollution degree II/2	400 V
GWFI	960 °C
Rated current (Use group D / UL 1059)	10 A
Rated current (Use group B / CSA)	15 A
Operating temperature, min.	-50 °C
Rated current (Use group D / CSA)	10 A
Operating temperature, max.	100 °C
Rated voltage for surge voltage class / pollution degree III/2	320 V
L1 in inches	0.8 inch
Short-time withstand current resistance	3 x 1s with 120 A
Storage temperature, min.	-25 °C
Rated current (Use group B / UL 1059)	15 A
Number of Rows	1
Max. relative humidity during storage	80 %
Rated current, max. number of poles (Tu=40°C)	14 A
Rated current, min. number of poles (Tu=20°C)	23 A
UL File Number Search	E60693
Outgoing elbow	180°
Temperature range, installation, min.	-25 °C
Rated impulse voltage for surge voltage class/ pollution degree III/2	4 kV
Insulating material group	IIIa
Storage temperature, max.	55 °C
Contact surface	tinned
Approvals	CSA, EAC, UR
Comparative Tracking Index (CTI)	≥200
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV
Rated current, max. number of poles (Tu=20°C)	16 A
tested acc. to standard	IEC 60664-1, IEC 61984
Rated voltage (Use group D / UL 1059)	300 V
Contact material	Copper alloy
Rated impulse voltage for surge voltage class/ pollution degree II/2	4 kV
