Weg

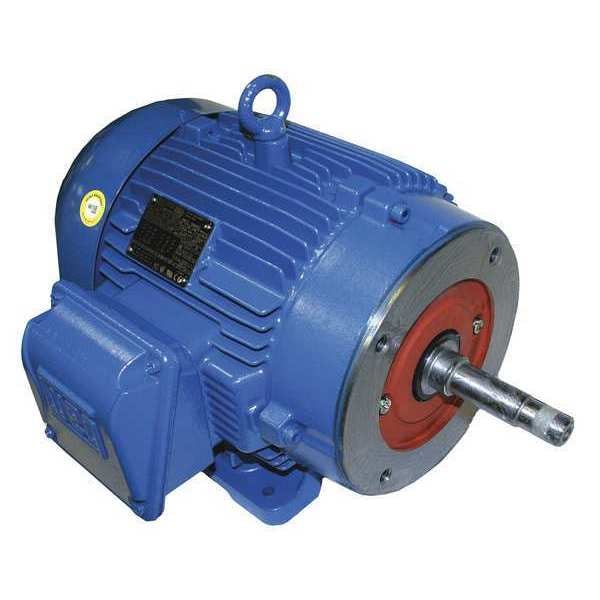

Close-Coupled Pump Motor, 7-1/2 HP
Mfr # 00736ET3E184JP-W22
Zoro # G7598635
product price: $1,004.25
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.
$1,004.25
Free 30-Day Returns
Key Features
- Motor Design 3-Phase
- HP 7 1/2
- RPM Range 3,001-3,600
- Nameplate RPM 3,485
- Voltage 208-230/460V AC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Weg
- MFR # 00736ET3E184JP-W22
- Zoro # G7598635
- Country of Origin Multiple
- Category Close-Coupled Pump Motors
Dimensions
Shaft Dia. | 7/8 in |
Shaft Length | 7 3/8 in |
Length Less Shaft | 13 1/8 in |
Overall Length | 20 1/2 in |
Manufacturers Warranty Length | 3 yr |
Bolt Circle Dia. | 5 7/8 in |
Height | 9 3/8 in |
Body Dia. | 9.3 in |
Description
Close-Coupled Pump Motor, Body Dia. 9.3 in, Bolt Circle Dia. 5 7/8 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 182/4JP, Hz 60 Hz, Full Load Amps 19.4-17.5/8.7, Full Load Amps @ 50Hz 19.4-17.5/8.7, Height 9 3/8 in, HP 7 1/2, HP @ 50Hz 5 1/2, 7 1/2, Includes Base, Ins. Class F, Inverter Rated Yes, Inverter Rating 1000:1, Length Less Shaft 13 1/8 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C
