Weatherhead

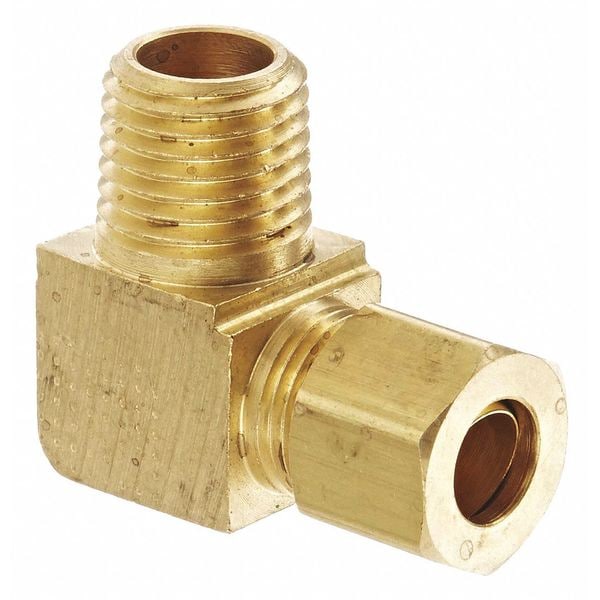

Elbow Male 5/16Inx1/4In Pipe, 0069X05A
Mfr # 69X5X4
Zoro # G3564499
product price: $7.15
/ea
Sold in multiples of 2 for $14.30
$14.30
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Fitting Shape Elbow
- Hydraulic Tube Size 5/16 in
- Hydraulic Fitting Thread Type Male NPT
- Finish Brass
- Hydraulic Fitting Thread Size 1/4"-18
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Weatherhead
- MFR # 69X5X4
- Zoro # G3564499
- Country of Origin Mexico
- Category Hydraulic Hose Fittings
Dimensions
Hydraulic Tube Size | 5/16 in |
Hydraulic Fitting Thread Size | 1/4"-18 |
Length (In.) | 1.2 in |
Overall Length | 1 3/16 in |
Fitting Side B Pipe Size | 1/4 in |
Fitting Side A Tube Outer Diameter | 5/16 in |
For Tube Outside Diameter | 5/16 in |
Pipe Size | 1/4 in |
Fitting Pipe Size | 1/4 in |
Details
Item | Connector |
Fitting Shape | Elbow |
Hydraulic Fitting Thread Type | Male NPT |
Finish | Brass |
Fitting Material | Brass |
Standards | SAE |
Fitting Side A Connection Type | Compression |
Specific Fitting Shape | 90 Degrees Elbow Adapter |
Fitting Side B Connection Type | MNPT |
Connection Type | Compression x MNPT |
End Connection Type | Compression, Threaded |
For Tube OD | 5/16 in |
Fitting Body Material | Brass |
Description
Connector, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPT, Fitting Material Brass, Fitting Side A Tube Outer Diameter 5/16 in, Overall Length 1 3/16 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Fitting Side B Pipe Size 1/4 in, Standards SAE
