  11. Walter - Shank tool - Grooving
Shop All Indexable Toolholders
Walter

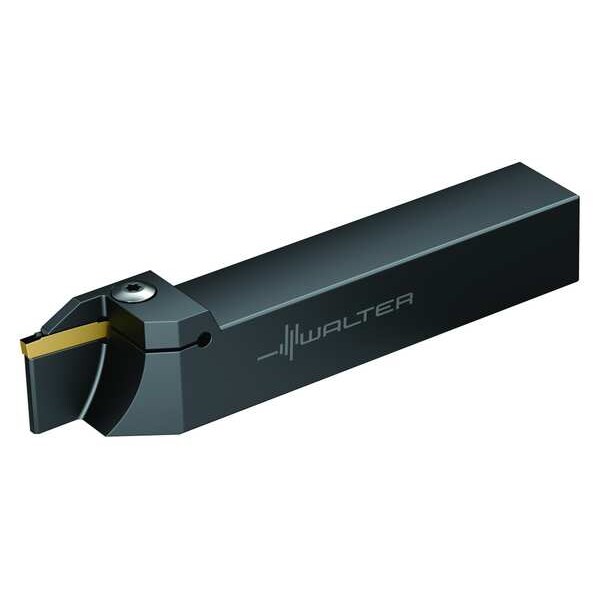

Walter - Shank tool - Grooving

product price: $176.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series G1011
  • Type G1011
  • For Use With GX Series Inserts
  • Shank Shape Square
  • Cutting Direction Left Hand
See all product information

Product Information

Dimensions

Overall Length 150.00mm
Shank Length 110.00mm
Max. Grooving Width 2.00mm
Head Length 40.00mm
Shank Height 16.00mm
Shank Width 16.00mm
Depth of Cut 21.00mm
Width Offset 0.079"
Height Offset 0.629"

Details

Item Indexable Grooving and Parting Toolholder
Series G1011
Type G1011
For Use With GX Series Inserts
Shank Shape Square
Cutting Direction Left Hand
ANSI Number G1011.1616L-2T21GX24
Insert Shape GX Series
Shank 0.629"
Includes Clamp Screw FS2118;Torx Key FS1464
Clamp FS2118
Style Shank
Torx Wrench FS1464
ANSI Code G1011.1616L-2T21GX24
Center to Cutting Tip 15.30mm
ISO Number G1011.1616L-2T21GX24
Cutting Application Grooving
Hardware Required Yes
Toolholder Style G1011
Insert Style GX
Compatible Hardware Clamp Screw FS2118;Torx Key FS1464
Cutting Location External
Insert Holding Type Clamp
Hardware Included Yes
Product Family NOVEX-CUT External Positive
Mounting Style Screw Clamp

Description

Indexable Grooving and Parting Toolholder, NOVEX-CUT External Positive, Insert Style GX, Left Hand, Grooving, Shank Width 16.00mm, ANSI Code G1011.1616L-2T21GX24, Center to Cutting Tip 15.30mm, Compatible Hardware Clamp Screw FS2118;Torx Key FS1464
