Walter

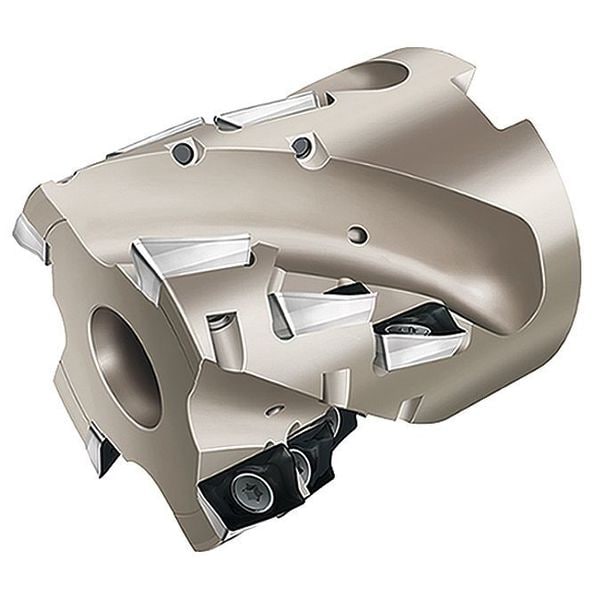

Indexable Square Shoulder End Mill, 71.00mm Cut Depth, F4238 Series
Mfr # F4238.N8.050.Z03.71
Zoro # G7824835
product price: $2,153.99
/ea
Free Shipping & Returns
$2,153.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series F4238
- Depth of Cut 71.00mm
- Insert Screw FS1453 Torx 15 IP
- Material All ISO
- Number of Inserts Required 3
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Walter
- MFR # F4238.N8.050.Z03.71
- Zoro # G7824835
- Country of Origin China
- Category Indexable Milling Cutters
Dimensions
Depth of Cut | 71.00mm |
Overall Length | 140.00 mm |
Min. Cutting Dia. | 50.00mm |
Connection Size | NCT 80mm |
Head Projection Length | 122.00mm |
Insert Cutting Edge Length | 71.00mm |
Max. Cutting Dia. | 50 mm |
Details
Item | Indexable Square Shoulder End Mill |
Series | F4238 |
Insert Screw | FS1453 Torx 15 IP |
Material | All ISO |
Number of Inserts Required | 3 |
Max. Speed | 14,100 RPM |
Cutting Application | Pocket Milling, Ramping, Shoulder Milling (Roughing) |
Coolant Fed | Coolant Through |
Features | 2 Cutting Edges per Indexable Insert, Full Effective Design |
ANSI Code | F4238.N8.050.Z03.71 |
ISO Number | F4238.N8.050.Z03.71 |
Compatible Hardware | FS1453 T15IP Clamping Screw |
Number of Coolant Holes | 4 |
Description
Indexable Square Shoulder End Mill, Max. Cutting Dia. 50 mm, Overall Length 140.00 mm, ANSI Code F4238.N8.050.Z03.71, Compatible Hardware FS1453 T15IP Clamping Screw, Connection Size NCT 80mm, Coolant Fed Coolant Through
