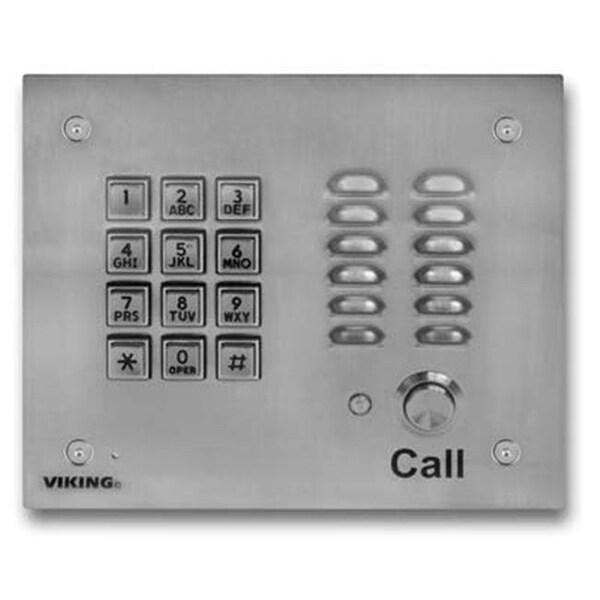

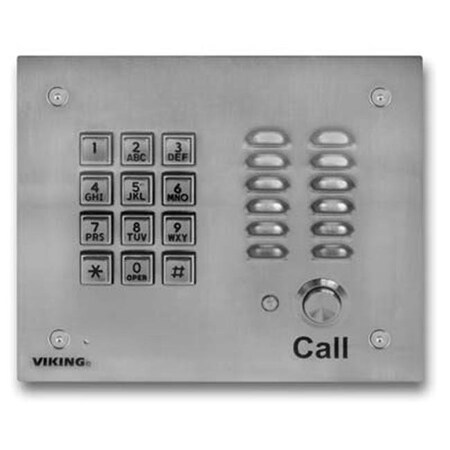

Viking K-1700-3EWP SS Handsfree Phone with Key Pad

The K-1700-3 provides a tough and attractive handsfree phone for apartment, and residential door entry or applications requiring a vandal resistant speaker phone.
When the "Call" button is pressed, the K-1700-3 returns dial tone. The keypad may then be used to dial any number. If no Touch Tone is entered within 8 seconds, CPC is detected, a busy signal is detected, or the programmable maximum call time has elapsed, the K- 1700-3 will automatically disconnect. Alternatively, the K-1700-3 may be disconnected by pressing the "Call" button again. The K-1700-3 comes complete with a standard, flush mount, rough-in box. In addition, an optional weather resistant, surface mount box is available.
For outdoor or harsh environments, the K-1700-3 is available with Enhanced Weather Protection (EWP). EWP products feature rubber gaskets and boots, closed cell foam gasketing, hand soldered silicon sealed connections, anti-corrosive gel filled butt connectors, as well as urethane encapsulated circuit boards with internally sealed, field-adjustable trim POTS and DIP switches.
Applications:

Apartment or multi-tenant office entry when used with the K-1900-3 or C-3000.

Residential entry system when used with the C-2000.

Courtesy and customer assistance phone.

Automated teller (ATM's) phone.
Features:

Vandal Resistant Features: 14 gauge, louvered, stainless steel faceplate with stainless steel speaker/mic screen, heavy duty metal keypad and "Call" button.

Optional Enhanced Weather Protection (EWP).

Yellow "in use" LED.

Volume adjustments for microphone and speaker.

Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC reorder tone, maximum call time out and selectable silence time out.

Selectable auto-answer feature.

Selectable push button disconnect.

Zinc plated steel rough-in box with (2) 3/4" conduit knockouts.

Optional VE-6x7 Surface Mount Box available.

Selectable maximum call time.

Selectable VOX switching speed.

K-1700-3-EWP conforms to NEMA requirements.

Made in the USA.
Specifications:

Power: Telephone line powered 20V DC/20mA minimum.

Overall: 140mm x 165mm x 66mm (5.5" x 6.5" x 2.6"), Rough-in.
