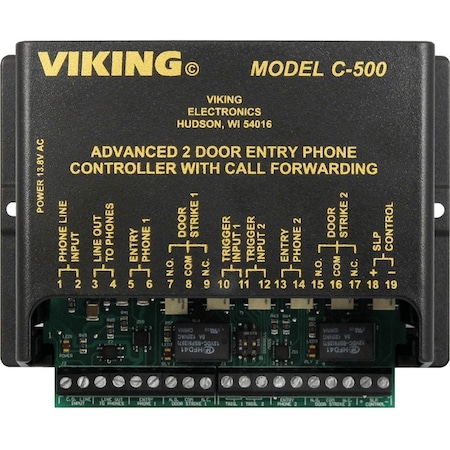

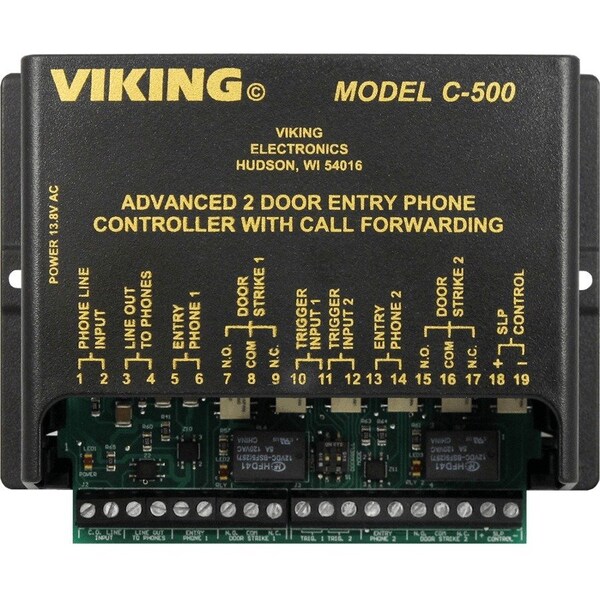

Viking Electronics C-500 Two Door Entry Phone Controller with Call Forwarding & Door Strike Controls

The C-500 allows single line telephones or a telephone system to share a phone line with two Viking entry phones. Up to four C-500’s can also be connected in series allowing control of up to eight entry phones and / or door strikes. Tenants may answer an entry phone call, converse with the visitor and let them in with a touch tone command which activates one of two relays to control a gate or door strike.

• Advanced Two Door Entry Phone Controller with Call Forwarding and Door Strike Control
• Allows single line telephones or a telephone system to share a phone line with two Viking entry phones
• Distinctive ringing, programmable entry phone Caller ID or beep tones allow you to distinguish front and back door entry calls from CO calls
• Stackable - connect up to four C-500 controllers to control up to eight entry points
• Built-in five number call forwarding dialer (if inside phone doesn’t answer), detects busy or ring no answer and goes on to the next number
• Provide entry phone activated chimes and whole house paging when used with a Viking SLP-1 or SLP-4
• Analog Station Mode allows entry phones to connect to analog PABX station
• Two SPDT 5A door strike relays with 1 or 2 digit activation commands
• Monitor any entry phone
• Up to 6 different keyless entry codes, 2 "one time use keyless entry codes and 1 keyless toggle code per entrance
• Auto answer for remote programming, relay control and monitoring
• Two trigger inputs for Request to Exit (REX), immediate call forwarding or lighted doorbell switches to activate entry phone calls

• Power: 120VAC / 13.8VAC 1.25A UL listed adapter provided
• Dimension: 5.2" x 4." x 1.75"
• Operating Temperature: 32 degree F to 90 degree F
• Humidity: 5% to 95% non-condensing
• SPDT Relay Contact Rating: 5A 30VDC / 5A 125VAC, 300VAC maximum
• Ring Output: 5 REN, capable of ringing (10) 0.5 REN phones
• Weight: 2.25 lbs
