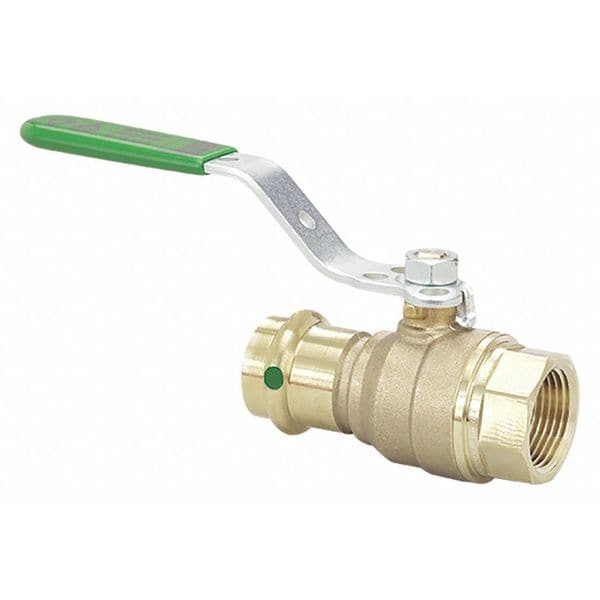

Viega ProPress ball valve, 1" x 1"

Mfr # 79980
Zoro # G6167034

$56.19

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Body Material Lead-Free Bronze
Body Style Inline
Tube Size 1"
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 61, NSF 372, ULC/ORD 213
Max. Pressure 200 psi CWP

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Viega
MFR # 79980
Zoro # G6167034
UPC #
691514799803
Country of Origin Germany
Category Ball Valves

Dimensions

Pipe Size	1"
Tube Size	1"
Overall Length	3.56 in
Connection Size - Side 2	1 in
Nominal Valve Size	1 in
Handle Length	5.75 in
Handle Height	2.46 in
Connection Size - Side 1	1 in

Details

Body Material	Lead-Free Bronze
Body Style	Inline
Compliance	ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 61, NSF 372, ULC/ORD 213
Max. Pressure	200 psi CWP
Temp. Range	0 Degrees to 250 Degrees F
Ball Valve Basic Body Material	Bronze
Stem Type	Blowout Proof
Connection Type	FNPT x Press
Stem Material	Lead Free Brass
Body Seal Material	EPDM
Max. Steam Pressure	15 psi WSP
Features	Smart Connect, Zero Lead
Port	Full
Seat Material	PTFE
Valve Structure	2-Piece
Item	Ball Valve
Standards	CRN: Canadian Registration Number, CSA International: Canadian Standards Association, FM: FM Global, IAPMO: Uniform Plumbing Code, ICC: International Plumbing Code, NFPA 13, 13D and 13R: Fire Sprinkler Applications, NSF/ANSI 61: Drinking Water System Components - Health Effects, NSF/ANSI 372: Drinking Water System Components - Lead Content, PHCC: National Standard Plumbing Code, UL: Underwriters Laboratories
Handle Type	Locking Lever
Ball Valve Product Group	Manual
Handle Material	Zinc Plated Steel with Vinyl Grip
Ball Material	316 stainless steel
Seal Material	EPDM
General Connection Type	Female NPT
Sub-Category	Bronze Ball Valves
Connection Type - Side 1	Press
Vented Ball Valve	Non-Vented
Vacuum Service Rating	-29.2 in Hg
Valve Construction	Two-Piece
Maximum Pressure - Operating	200 psi
For Media	Potable Water
Ball Port Style	Full Port
Valve Body Style	Straight
Operating Temperature - Minimum	0 Degrees F
3-A Standard Compliance	Not Rated
Maximum Pressure - Steam	Not Rated
Color - Valve Handle	Green
NSF Certifications for Food and Drinking Water	NSF 61
Maximum Pressure - Combustible Gas	Not Rated
Operating Temperature - Maximum	250 Degrees F
Connection Type - Side 2	NPT
Connection Gender - Side 2	Female
Valve Ways	2-Way
Handle - Locking	Locking

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Potable Water, Valve Construction Two-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 200 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.2 in Hg, Ball Material Stainless Steel, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Lever
