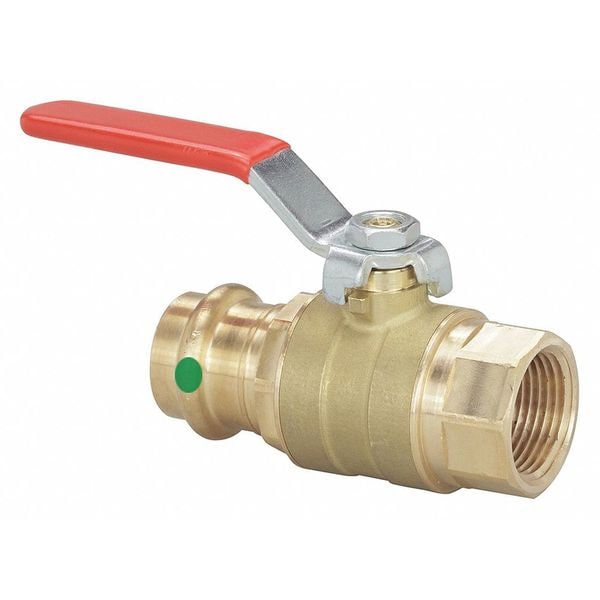

Viega ProPress ball valve, 1" x 1"

Mfr # 24040
Zoro # G8867591

$51.29

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Body Material Brass, Bronze
Body Style Inline
Tube Size 1" x 1"
Max. Steam Pressure 15 psi WSP
Stem Type Blowout Proof

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Viega
MFR # 24040
Zoro # G8867591
UPC #
691514240404
Country of Origin Italy
Category Ball Valves

Dimensions

Pipe Size	1"
Tube Size	1" x 1"
Overall Length	3.68 in
Connection Size - Side 2	1 in
Handle Length	4.72 in
Handle Height	2.13 in
Connection Size - Side 1	1 in
Nominal Valve Size	1 in

Details

Body Material	Brass, Bronze
Body Style	Inline
Max. Steam Pressure	15 psi WSP
Stem Type	Blowout Proof
Features	Smart Connect
Item	Ball Valve
Body Seal Material	EPDM
Port	Full
Standards	13D and 13R: Fire Sprinkler Applications, CRN: Canadian Registration Number, CSA International: Canadian Standards Association, FM: FM Global, IAPMO: Uniform Plumbing Code, ICC: International Plumbing Code, NFPA 13, NSF/ANSI 372: Drinking Water System Components - Lead Content, NSF/ANSI 61: Drinking Water System Components - Health Effects, PHCC: National Standard Plumbing Code, UL: Underwriters Laboratories
Stem Material	brass
Compliance	ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Ball Material	Chrome Plated Brass
Seat Material	PTFE
Handle Type	Lever
Handle Material	Zinc Plated Steel with Vinyl Grip
Temp. Range	0 Degrees to 250 Degrees F
Valve Structure	3-Piece
Connection Type	FNPT x Press
Ball Valve Product Group	Manual
Ball Valve Basic Body Material	Bronze
Max. Pressure	200 psi CWP
Seal Material	EPDM
General Connection Type	Female NPT
Maximum Pressure - Steam	Not Rated
Valve Construction	Three-Piece
Handle - Locking	Non-Locking
Vacuum Service Rating	-29.2 in Hg
Connection Type - Side 2	NPT
Operating Temperature - Minimum	0 Degrees F
Valve Body Style	Straight
3-A Standard Compliance	Not Rated
NSF Certifications for Food and Drinking Water	NSF 61
Connection Type - Side 1	Press
Ball Port Style	Full Port
Operating Temperature - Maximum	250 Degrees F
Maximum Pressure - Operating	200 psi
Valve Ways	2-Way
Vented Ball Valve	Non-Vented
Color - Valve Handle	Red
For Media	Water
Connection Gender - Side 2	Female
Maximum Pressure - Combustible Gas	Not Rated

Description

Manual Two-Way Ball Valve, Body Material Brass, Bronze, For Media Water, Valve Construction Three-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 200 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.2 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking

Restrictions

*** This is a restricted item. It cannot be used in the USA for potable water applications.
