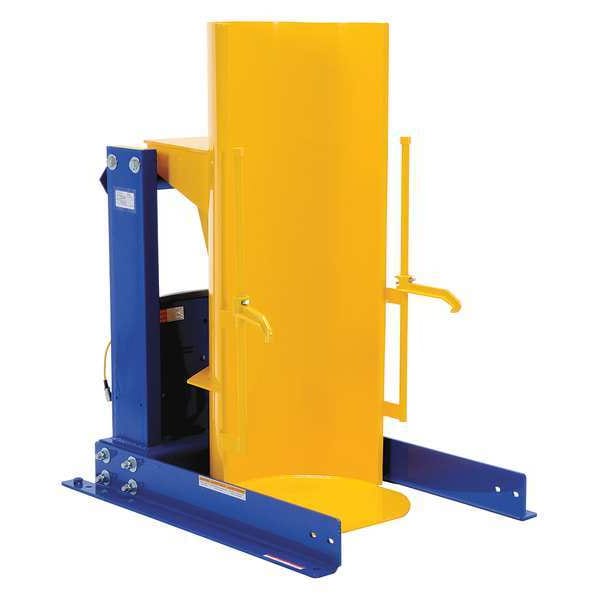

Portable Drum Dumper, 63-3/4in, Steel

Mfr # HDD-36-15-P
Zoro # G3473961

$4,358.99

Item requires special delivery charges. A $250.00 per item surcharge will be applied.

Free 30-Day Returns

Key Features

Overall Height 64 in
Overall Length 61 1/2 in
Overall Width 36 in
Load Capacity 1,500 lb
Wheel Type Caster

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Vestil
MFR # HDD-36-15-P
Zoro # G3473961
UPC #
691215022385
Country of Origin United States
Category Drum Tools

Dimensions

Overall Height	64 in
Overall Length	61 1/2 in
Overall Width	36 in
Level Height	63 3/4 in
Rotated Height	96 in
Dia.	24 in
Dispensing Height	36 in
Dump Height	36 in
Overall WxDxH	36 in x 62 in x 64 in
Overall Depth	62 in
Rotation Height	96 in
Manufacturer Warranty Length	1 yr Limited
For Maximum Drum Diameter	24 in
Power Cord Length	8 ft

Details

Load Capacity	1,500 lb
Item	Drum Dumper
Wheel Type	Caster
Total Raise Time	42 sec
Lowest Position of Jaws	27 in
Rotation Angle	135 Degrees
For Use With	30 and 55 gal Drums
Rotation	135 Degrees
Construction	Steel
Finish	Powder Coated
Number of Drums	1
Max. Lift	96 in
Clearance Between Legs	28 1/2 in
Drum Capacity	55 gal, 30
Motor HP	3/4 hp
Wheels	5 in x 2 in Polyurethane
Casters	8 in x 3 in Phenolic
Type	Portable
Voltage	115
Drum Rotation	135 Degrees
Dump Angle	45 Degrees
Includes	115V Single Phase, 3/4 HP Motor, 56 Frame, 60 Hz Upper Travel Limit Switch, 8 ft Long Coil Cord
Phase	Single
Standards	OSHA
Product Type	Drum Dumper
Features	Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Weight Capacity	1,500 lb
Motor Type	AC Motor
Portability	Casters
Chute Material	Steel
Wheel Material	Polyurethane
Maximum Motor Horsepower	3/4 hp
For Drum Capacity	30 gal, 55 gal
For Container Type	Drums
For Drum Material	Fiber, Plastic, Metal
Housing Material	Steel
Assembly	Fully Assembled
Includes Battery	No
Power Source	Hydraulic
Drum Securing Mechanism	Clamp
Leg Clearance	28 1/2 in
Operating Voltage	115V AC
Frequency	60 Hz
Housing Color	Blue, Yellow
Housing Finish	Powder Coated
Caster Type	(2) Rigid; (2) Swivel
Electrical Connection	Power Cord
Raise Time	42 in/sec
Vertical Lift	96 in
Body Material	Steel

Description

Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 36 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 115V Single Phase, 3/4 HP Motor, 56 Frame, 60 Hz Upper Travel Limit Switch, 8 ft Long Coil Cord, Includes Battery No, Operating Voltage 115V AC, Overall Depth 62 in, Overall Height 64 in, Overall Width 36 in

Documents & Resources

Technical Guide Opens PDF in new window

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
