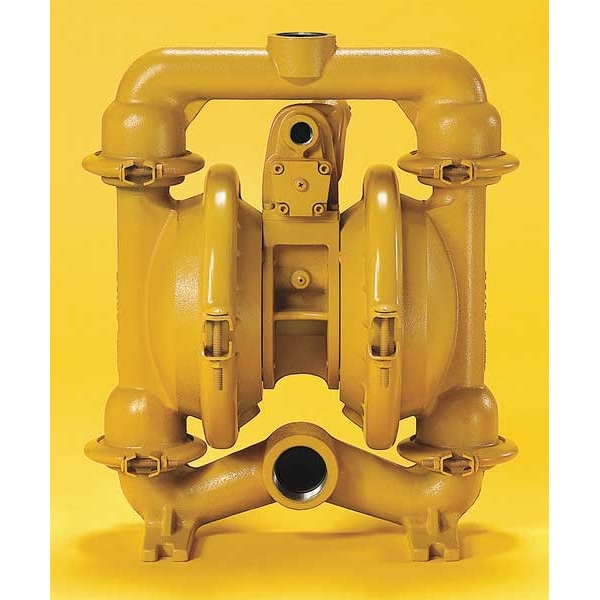

Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, 70 GPM

Mfr # E4SA5T5S0-ATEX
Zoro # G2432096

$3,614.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Housing Material - Pumps Stainless Steel
Diaphragm Material - Pumps PTFE
Max. Flow 56 gpm
Pump Operation Type Air
Max. Temp - Pumps 220 Degrees F

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Versa-Matic
MFR # E4SA5T5S0-ATEX
Zoro # G2432096
Country of Origin United States
Category Diaphragm Pumps

Dimensions

Inlet/Outlet Size	1 1/4 in
Air Inlet Size	1/2 in FNPT
Length	11 1/2 in
Height	18 in
Width	14 1/4 in
Max. Dia. Solids	3/16 in
Manufacturers Warranty Length	1 yr
Overall Size	11.5 in x 14.3 in x 18 in
Fluid Connection Size	1 1/4 in
Media Discharge Size	1 1/4 in
Media Intake Size	1 1/4 in

Details

Housing Material - Pumps	Stainless Steel
Diaphragm Material - Pumps	PTFE
Max. Flow	56 gpm
Item - Air Operated Pumps	Double Diaphragm Pump
Pump Operation Type	Air
Max. Temp - Pumps	220 Degrees F
Connection Style	NPT
Agency Compliance	CE, EAC
Manifold Connection	Single
Max. Operating Pressure	125 psi
Operation Type	Air Operated
Valve Type	Ball
Self-Priming Dry	10 ft
Diaphragm Material	PTFE
Check Seat Material	316 Stainless Steel
Self-Priming Wet	20 ft
Max. Temp.	212 Degrees F
Ball Material	PTFE
Body Material	Stainless steel
Max. Flow GPM	70 gpm
Item	Double Diaphragm Pump
Standards	CE Certified, EAC
Media Discharge Type	NPT
Port Location	Bottom Top, Center Center, Center Top
Valve Material	PTFE
Air Inlet	1/2 in FNPT
Fluid Discharge Connection	1 1/4 in NPT
Fluid Connection Type	NPT
Fluid Intake Connection	1 1/4 in NPT
Housing Material	316 Stainless Steel
Media Intake Type	NPT
Chemical Compatibility	Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water
Valve Material	PTFE
Media Temperature (Maximum)	220 Degrees F
Media Discharge Connection Type	NPT
Media Intake Connection Type	NPT
Air Intake Connection Type	FNPT
Wetted Housing Material	316 Stainless Steel

Description

Double Diaphragm Pump, Air Intake Connection Type FNPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Manifold Connection Single, Media Discharge Connection Type NPT, Media Intake Connection Type NPT, Media Temperature (Maximum) 220 Degrees F, Valve Material PTFE, Wetted Housing Material 316 Stainless Steel
