Vektek

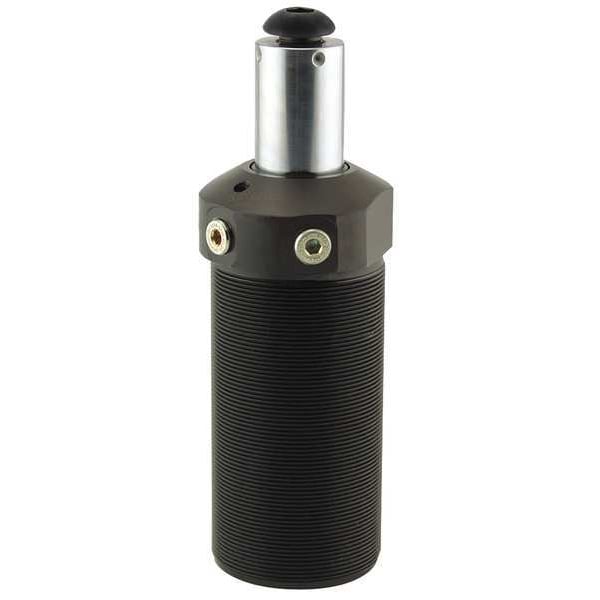

Hydraulic Clamp, Swing, Threaded, 5000 lb.
Mfr # 15-0218-00-L
Zoro # G9244392
Free Shipping & Returns
$714.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Clamping Force 5,000 lb
- Effective Area Clamped 1.178 sq in
- Turns Left
- Oil Capacity Unclamped 3.992 cu in
- Max. Oil Flow 1.5 gpm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Vektek
- MFR # 15-0218-00-L
- Zoro # G9244392
- Country of Origin United States
- Category Swing Cylinders
Dimensions
Extended Height | 9.96 in |
Port Size | #4 SAE |
Outside Dia. | 2.5 in |
Details
Item | Swing Clamp Hydraulic Cylinders |
Clamping Force | 5,000 lb |
Effective Area Clamped | 1.178 sq in |
Turns | Left |
Oil Capacity Unclamped | 3.992 cu in |
Max. Oil Flow | 1.5 gpm |
Material of Construction | Steel |
Mounting Thread | 2-1/2"-16 |
Function | Double Acting |
Type | Swing |
Pressure Range | 500 to 5000 psi |
Body Style | Threaded |
Swing Angle | 90 Degrees |
Oil Capacity Clamped | 1.955 cu in |
Stroke | 0.63" Verticle/1.66" Total |
Description
Swing Clamp Hydraulic Cylinders, Turns Left, Clamping Force 5,000 lb, Effective Area Clamped 1.178 sq in, Swing Angle 90 Degrees , Port Size #4 SAE, Oil Capacity Clamped 1.955 cu in, Oil Capacity Unclamped 3.992 cu in, Max. Oil Flow 1.5 gpm, Pressure Range 500 to 5000 psi, Extended Height 9.96 in, Outside Dia. 2.5 in, Mounting Thread 2-1/2 In.-16
