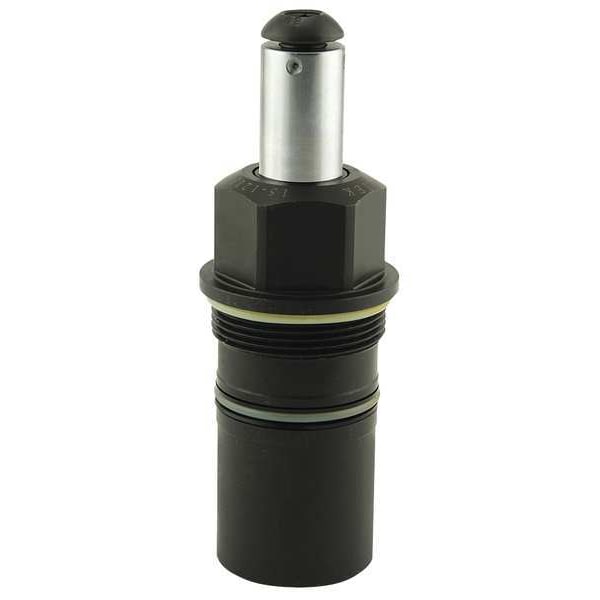

Hyd. Clamp, Swing, Cartridge Mount, 2600 lb
Mfr # 15-1213-02-L
Zoro # G9244453
Free Shipping & Returns
$579.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Clamping Force 2,600 lb
- Effective Area Clamped 0.626 sq in
- Turns Left
- Mounting Hole Dia. 1.962 in
- Pressure Range 500 to 5000 psi
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Vektek
- MFR # 15-1213-02-L
- Zoro # G9244453
- Country of Origin United States
- Category Swing Cylinders
Dimensions
Mounting Hole Dia. | 1.962 in |
Port Size | #4 SAE |
Outside Dia. | 1.751 in |
Extended Height | 7.3 in |
Details
Item | Swing Clamp Hydraulic Cylinders |
Clamping Force | 2,600 lb |
Effective Area Clamped | 0.626 sq in |
Turns | Left |
Pressure Range | 500 to 5000 psi |
Mounting Thread | 1-7/8"-12 |
Swing Angle | 90 Degrees |
Body Style | Cartridge Mount |
Stroke | 0.50" Verticle/1.16" Total |
Type | Swing |
Oil Capacity Clamped | 0.726 cu in |
Function | Double Acting |
Material of Construction | Steel |
Oil Capacity Unclamped | 1.423 cu in |
Max. Oil Flow | 1.5 gpm |
Description
Swing Clamp Hydraulic Cylinders, Turns Left, Clamping Force 2,600 lb, Effective Area Clamped 0.626 sq in, Swing Angle 90 Degrees , Port Size #4 SAE, Oil Capacity Clamped 0.726 cu in, Oil Capacity Unclamped 1.423 cu in, Max. Oil Flow 1.5 gpm, Pressure Range 500 to 5000 psi, Extended Height 7.3 in, Outside Dia. 1.751 in, Mounting Hole Dia. 1.962 in, Mounting Thread 1-7/8 In.-12
