Shop All Swing Cylinders
Vektek

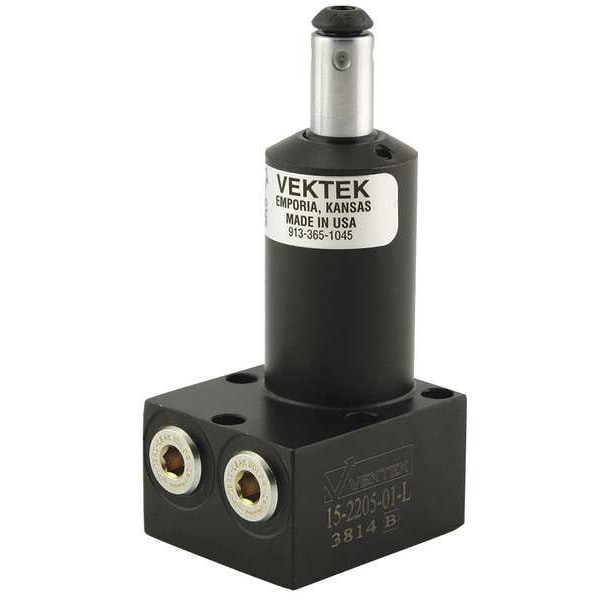

Hyd. Clamp, Swing, Bottom Flange, 450 lb.
Mfr # 15-2205-03-L
Zoro # G9244514
product price: $499.99
/ea
Free Shipping & Returns
$499.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Clamping Force 450 lb
- Effective Area Clamped 0.098 sq in
- Turns Left
- Overall Length 6"
- Body Style Bottom Flange
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Vektek
- MFR # 15-2205-03-L
- Zoro # G9244514
- Country of Origin United States
- Category Swing Cylinders
Dimensions
| Overall Length | 6" |
| Extended Height | 4.32 in |
| Outside Dia. | 1.05 in |
| Port Size | #4 SAE |
| Mounting Hole Dia. | 0.22 in |
Details
| Item | Swing Clamp Hydraulic Cylinders |
| Clamping Force | 450 lb |
| Effective Area Clamped | 0.098 sq in |
| Turns | Left |
| Body Style | Bottom Flange |
| Material of Construction | Steel |
| Type | Swing |
| Pressure Range | 500 to 5000 psi |
| Oil Capacity Unclamped | 0.142 cu in |
| Stroke | 0.22" Verticle/0.57" Total |
| Swing Angle | 90 Degrees |
| Function | Double Acting |
| Oil Capacity Clamped | 0.056 cu in |
| Max. Oil Flow | 1.5 gpm |
| Number of Bolts | 5 |
Description
Swing Clamp Hydraulic Cylinders, Turns Left, Clamping Force 450 lb, Effective Area Clamped 0.098 sq in, Swing Angle 90 Degrees , Port Size #4 SAE, Oil Capacity Clamped 0.056 cu in, Oil Capacity Unclamped 0.142 cu in, Max. Oil Flow 1.5 gpm, Pressure Range 500 to 5000 psi, Extended Height 4.32 in, Outside Dia. 1.05 in, Mounting Hole Dia. 0.22 in, Number of Bolts 5
