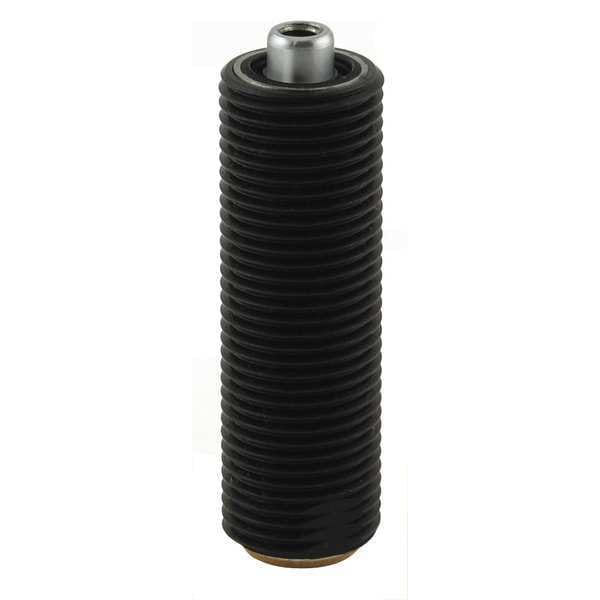

Cylinder, Threaded, 550 lb, 0.25 In Stroke
Mfr # 20-0104-02
Zoro # G8914692
Free Shipping & Returns
$115.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Single Acting/Double Acting Single Acting
- Push Capacity @ 5000 psi 550 lb
- Stroke Length 1/4 in
- Retracted Height 1.98 in
- Body Thread 5/8"-18
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Vektek
- MFR # 20-0104-02
- Zoro # G8914692
- Country of Origin United States
- Category Threaded Body Cylinders
Dimensions
Stroke Length | 1/4 in |
Retracted Height | 1.98 in |
Extended Height | 2.22 in |
Outside Dia. | 0.625 in |
Plunger Thread Size | #8-32 |
Details
Single Acting/Double Acting | Single Acting |
Push Capacity @ 5000 psi | 550 lb |
Body Thread | 5/8"-18 |
Pressure Range | 5000 psi Max. |
Effective Area Push | 0.110 sq. in. |
Plunger Thread | 8-32 |
Oil Capacity Push | 0.028 cu in |
Material of Construction | Steel |
Function | Single Acting |
Capacity @ 5000 PSI | 550 lb. |
Item | Threaded Body Hydraulic Cylinder |
Stroke | 0.25" |
Type | Threaded Body |
Cylinder Type | Threaded Body |
Body Material | Steel |
Effective Push Area | 0.110 sq in |
Mounting Style | Threaded Body |
Description
Threaded Body Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Single Acting, Push Capacity @ 5000 psi 550 lb, Stroke Length 1/4 in, Effective Push Area 0.110 sq in, Oil Capacity Push 0.028 cu in, Extended Height 2.22 in, Retracted Height 1.98 in, Body Thread 5/8 In.-18, Plunger Thread Size #8-32, Outside Dia. 0.625 in
