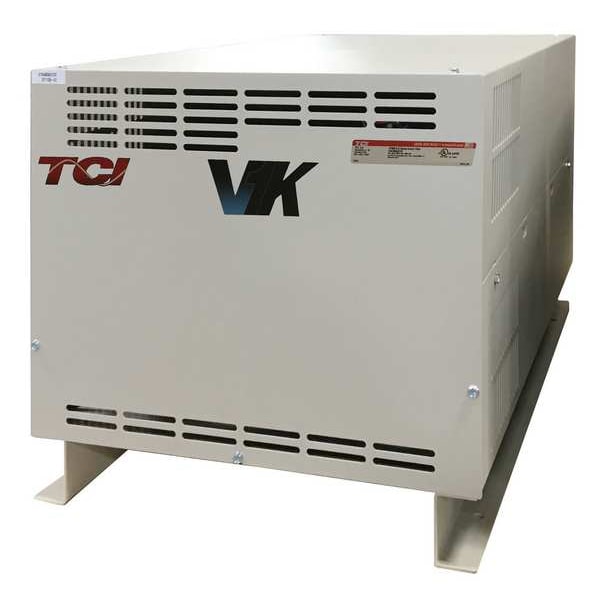

Output Filter, dV/dT, UL Type 1,420A
Mfr # V1K420A01
Zoro # G9811742
product price: $2,293.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.
$2,293.99
Free 30-Day Returns
Key Features
- Features Improves System Productivity by Increasing Motor Bearing Life, Limits Voltage Spikes to Below 1000 V For Applications with Lead Lengths up to 1000 ft, Prevents Motor Failure with Protection Against Motor Insulation Breakdown, Reduces Common Mode by a Minimum of 30%, Reduces Motor Heating, Noise and Vibration
- Standards RoHS, UL Listed
- Enclosure UL Type 1
- Width 18
- Max. HP 350 hp
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand V1K Filters
- MFR # V1K420A01
- Zoro # G9811742
- Country of Origin United States
- Category Output Filters
Dimensions
Width | 18 |
Depth | 30 |
Height | 16.5 |
For Motor Lead Length | 100 ft to 1000 ft |
Overall Depth | 30 in |
Overall Height | 16.5 in |
Overall Width | 18 in |
Details
Features | Improves System Productivity by Increasing Motor Bearing Life, Limits Voltage Spikes to Below 1000 V For Applications with Lead Lengths up to 1000 ft, Prevents Motor Failure with Protection Against Motor Insulation Breakdown, Reduces Common Mode by a Minimum of 30%, Reduces Motor Heating, Noise and Vibration |
Standards | RoHS, UL Listed |
Item | Output Filter |
Enclosure | UL Type 1 |
Max. HP | 350 hp |
Phase | Three |
Input Voltage | 600V AC |
Function | Reduce Voltage Overshoots and Reflective Wave Due to dV/dT |
Application | Agriculture Irrigation Systems, HVAC Cooling Systems, Process Automation Facilities, Submersible Pumps, Wastewater Pumping Stations |
Max. Output Amps | 420 A |
Filter Type | dV/dT |
Watts Loss | 450 W |
Frequency | 60 Hz |
Enclosure Type | UL Type 1 |
Maximum Output Power | 350 hp |
Maximum Output Current | 420 A |
For Use With | Variable Frequency Drive |
Description
Output Filter, UL Type 1, Filter Type dV/dT, Maximum Output Power 350 hp, 600V AC, Maximum Output Current 420 A, Watts Loss 450 W, Overall Height 16.5 in, Overall Width 18 in, Overall Depth 30 in
