Shop All 3-Phase Condenser Fan Motors
U.S. Motors

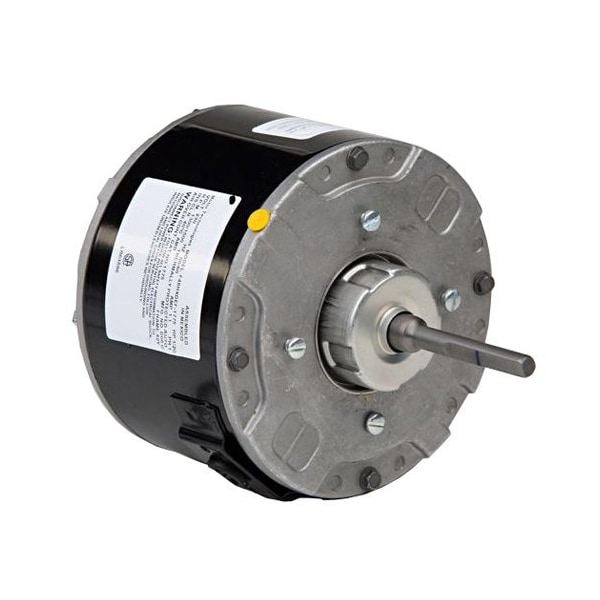

Motor, 1/20HP, 1300/1500,230V, 50, 60HZ
Mfr # 1775P
Zoro # G0913779
product price: $133.99
/ea
Free Shipping & Returns
$133.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Motor Design Permanent Split Capacitor
- Phase Single
- RPM Range 1001-1100
- No. of Speeds 1
- Voltage 230V AC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand U.S. Motors
- MFR # 1775P
- Zoro # G0913779
- UPC # 786382082772
- Country of Origin Mexico
- Category 3-Phase Condenser Fan Motors
Dimensions
Shaft Length | 3 1/8 in |
Length Less Shaft | 3 13/16 in |
Overall Length | 6 7/8 in |
Body Dia. | 5 in |
Description
Condenser Fan Motor, Motor Design Permanent Split Capacitor, Phase Single, 1/20 HP, No. of Speeds 1, Voltage 230V AC, Motor Shaft Rotation CCW, 42 Frame, Motor Enclosure Design Totally Enclosed Air-Over, Stud Motor Mounting Type, Shaft Length 3 1/8 in, Motor Thermal Protection Auto, Max. Ambient Temp. 40 Degrees C, Nameplate RPM 1,300, HVAC/R, 60/50 Hz, Full Load Amps 0.50 A, Ins. Class B, Motor Bearings Ball, Overall Length 6 7/8 in
