Shop All Roller Conveying
Ultimation

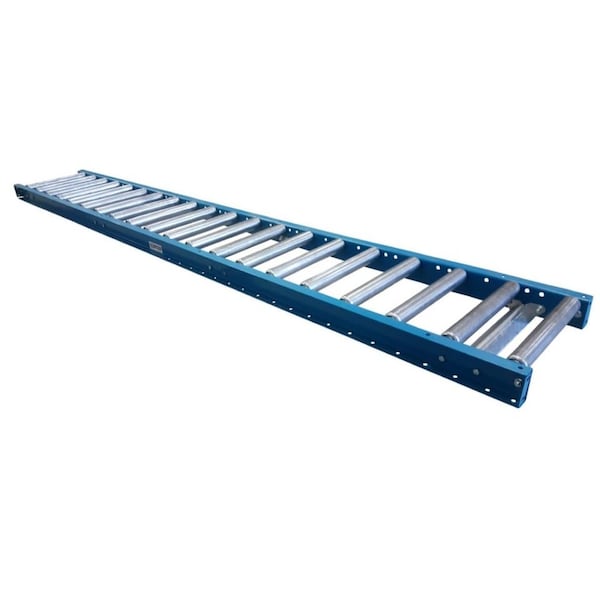

Roller Conveyor, 18inW x 10L, 1.9in Dia. Rollers
Mfr # URS19G-15-6-10
Zoro # G810908579
Item requires special delivery charges. A $115.00 per item surcharge will be applied.
$387.99
Free 30-Day Returns
Key Features
- Roller Dia. 1.9 in
- For Between Frame Width 15 in
- Roller Load Capacity 7236 lbs
- Duty Rating Medium Duty
- Roller Finish/Coating 15 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Ultimation
- MFR # URS19G-15-6-10
- Zoro # G810908579
- Country of Origin United States
- Category Roller Conveying
Dimensions
Roller Dia. | 1.9 in |
For Between Frame Width | 15 in |
Overall Length | 10 ft |
Overall Width | 18 in |
Details
Item | Gravity Conveyor |
Roller Load Capacity | 7236 lbs |
Duty Rating | Medium Duty |
Roller Finish/Coating | 15 in |
Frame Material | Steel |
Material | Steel |
Frame Finish | Powder Coated |
Description
These gravity roller conveyors include the conveyor frames and rollers. Legs if required are sold separately. These conveyors are excellent for both permanent and temporary conveyor lines often found in warehouses, shipping departments and assembly areas. Gravity curves and spur options can add to the versatility of straight conveyors. Use these sections of 10 long conveyors to provide rolling support surfaces either individually or in pairs side by side. The rollers sit approximately 1/4in higher than the frame, allowing the load to protrude over the sides or ends as required. This gravity conveyor is engineered with a 18in overall width from outside of the frame to the outside of the opposite frame, 15in between frame width the distance inside the frames from one side to the other, and 10' overall length. Equipped with a 10 Ga. steel frame measuring 3-1/2in deep x 1-1/2in flange, powder-coated in Ultimation Blue, and 1.9in diameter rollers. This conveyor has a maximum load capacity of 5,360-pounds when the frame is fully supported.
