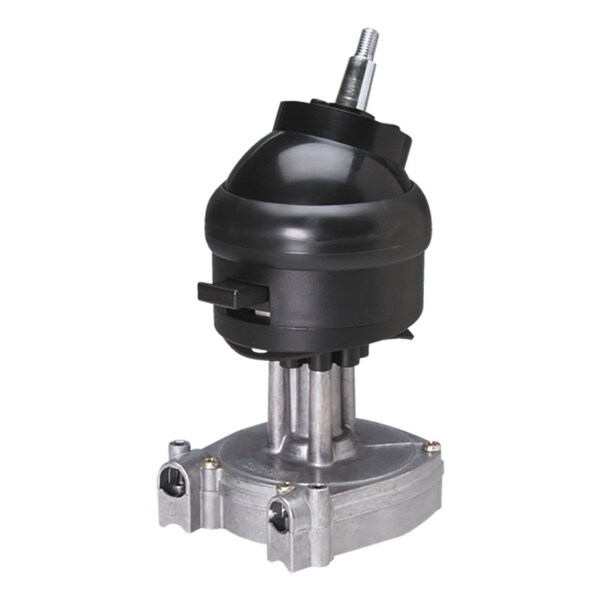

UFlex Zero Torq Rotary Helm Single Cable Steering

T83FC Zero Torq Rotary Helm Single Cable Steering T83FC has a tilt range of 48 degrees and five locking positions, fast to get connected and easily installed with a planetary gear design and 3.8 approx steering wheel turns lock to lock. Features: Tilt range of 48 degrees and five locking positions Fast connect, simple installation The tilt device eliminates under-dash movement Standard 3/4 tapered shaft stainless steel All stainless steel cable output ends Corrosion resistant materials T83NRFC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer and MasterDrive steering systems For boats faster than 50 mph, our hydraulic steering systems are recommended Optional steering wheel Engine connection kits Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards Specifications: M66 steering cable stroke: 228 mm 9in Lock-to-lock steering wheel turns: Approx. 3,8 Max. dash depth: 25,4 mm 1in Max. steering wheel diameter: 406 mm 16in Min. steering cable bend radius: 200 mm 7.9in This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
