Tycon Systems

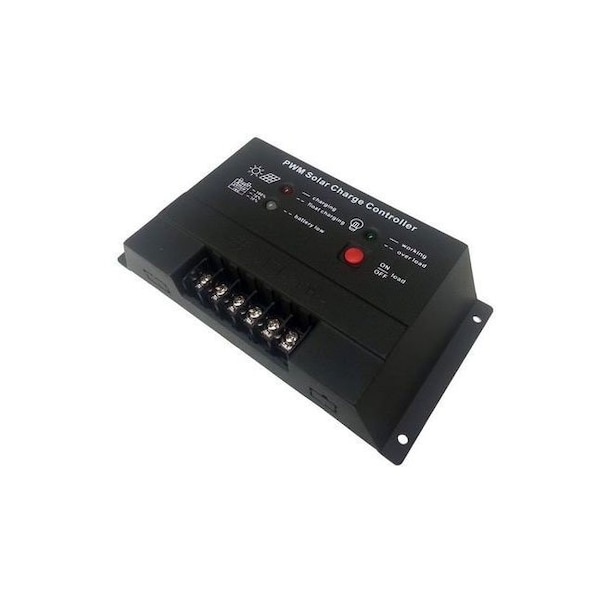

PWM Solar Chrg Ctrl, 12/24V 20A, Display
Mfr # TP-SC24-20
Zoro # G4843574
product price: $50.79
/ea
$50.79
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Over Discharge Voltage OFF: 10.7 / 21.4 +/ - 0.2V ON: 12. 6 / 2 5 . 2 +/ - 0.2V
- Rated Voltage 12/24 (Auto Detect)
- Over voltage Protection 15.5 / 31 V
- Float Voltage 13.8 / 27.6 +/ - 0.2V
- Absorption Voltage 14.4 / 28.8 +/ - 0.2 V
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Tycon Systems
- MFR # TP-SC24-20
- Zoro # G4843574
- UPC # 810017122042
- Country of Origin China
- Category Solar Panel Accessories
Dimensions
Dimensions | 168 x 8 8 x 3 4 mm( 6 . 6 x 3.5 x 1.25") |
Max Wire Size | 10 AWG |
Details
Item | Solar Charge Controller |
Over Discharge Voltage | OFF: 10.7 / 21.4 +/ - 0.2V ON: 12. 6 / 2 5 . 2 +/ - 0.2V |
Rated Voltage | 12/24 (Auto Detect) |
Over voltage Protection | 15.5 / 31 V |
Float Voltage | 13.8 / 27.6 +/ - 0.2V |
Absorption Voltage | 14.4 / 28.8 +/ - 0.2 V |
Operating Temp | - 30 ° C to 6 0 ° C ( - 22 ° F to 140 ° F) |
Self Consumption | < 15 mA |
Voltage Drop (Battery to Load) | < 0.3V |
Rated Current (Solar and Load) | 20 A |
Description
Solar PWM Battery Charge Controller , Auto Voltage, 12/24V, 20A, Parametric Display
